This article is based on NetBIOS, SNMP & LDAP Network Enumeration which comes module 3 of certified ethical hacker.
Learning Outcomes
In this module, you will complete the following exercises:
- Exercise 1 — Enumeration Concepts
- Exercise 2 — NetBIOS Enumeration
- Exercise 3 — SNMP Enumeration
- Exercise 4 — LDAP Enumeration
After completing this module, you will be able to:
- Use SuperScan for NetBIOS Enumeration
- Perform NetBIOS Enumeration Using Nbtstat
- Perform NetBIOS Enumeration using Nmap
- Perform SNMP Enumeration Using IP Network Browser
- Perform SNMP Enumeration Using Snmp-check

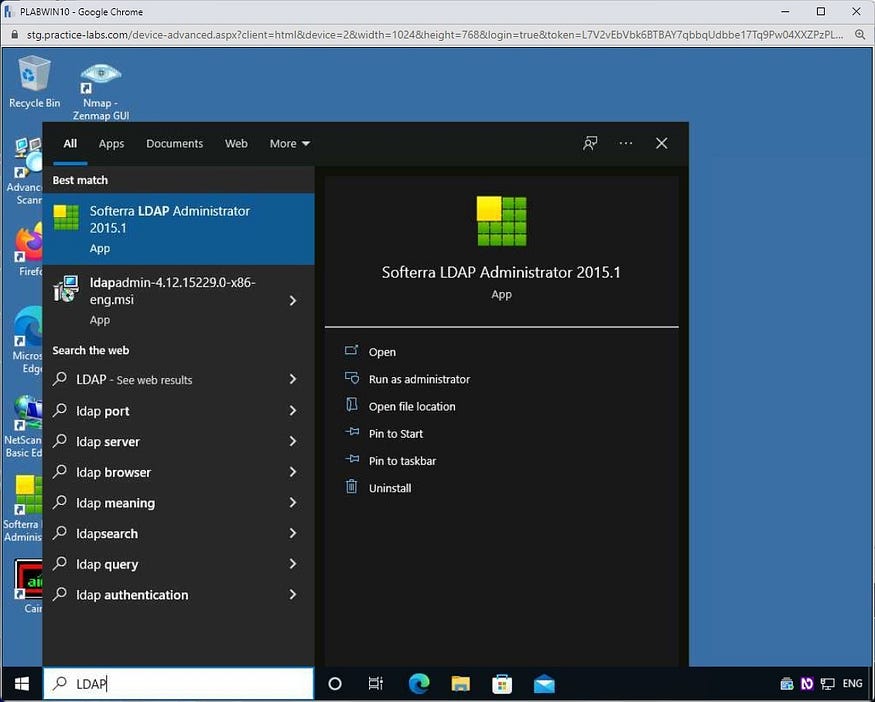

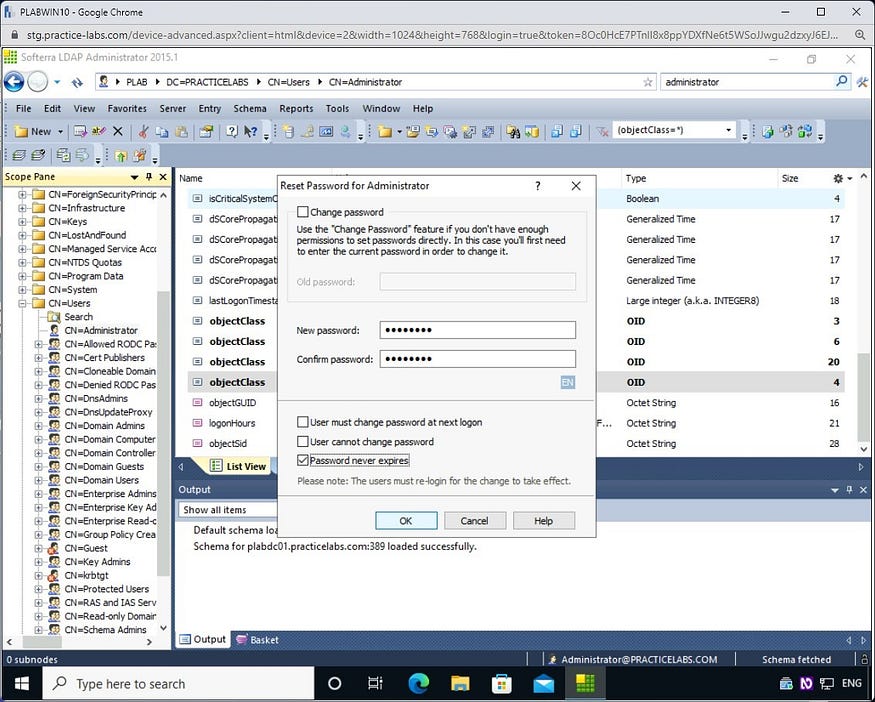

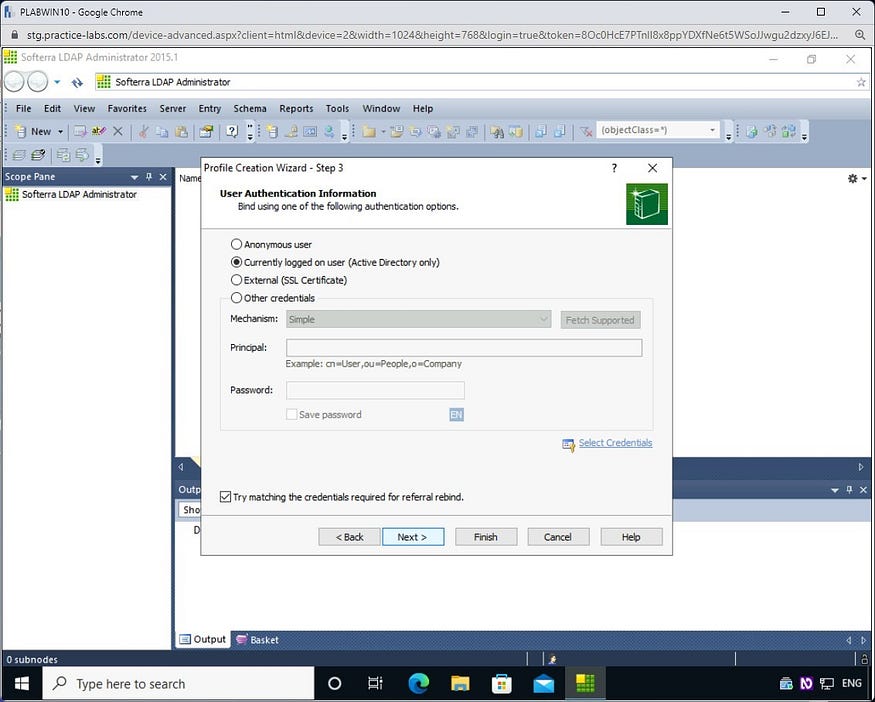

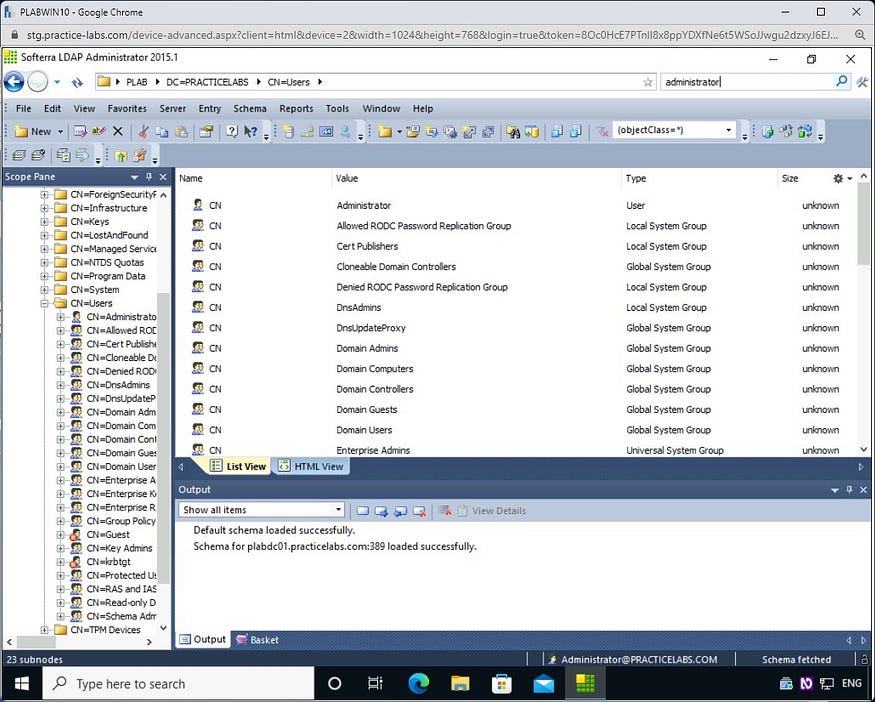

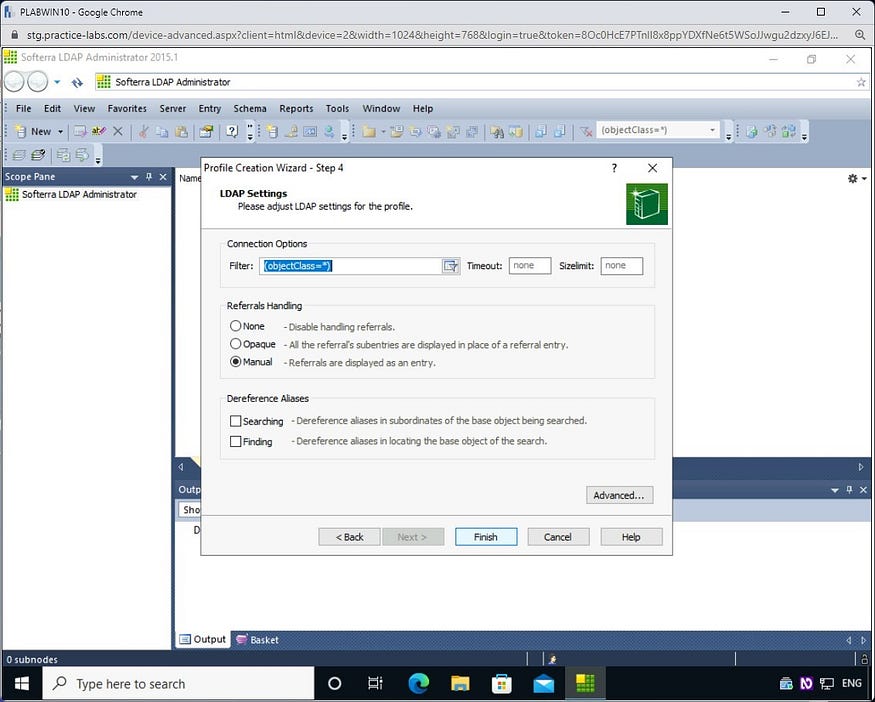

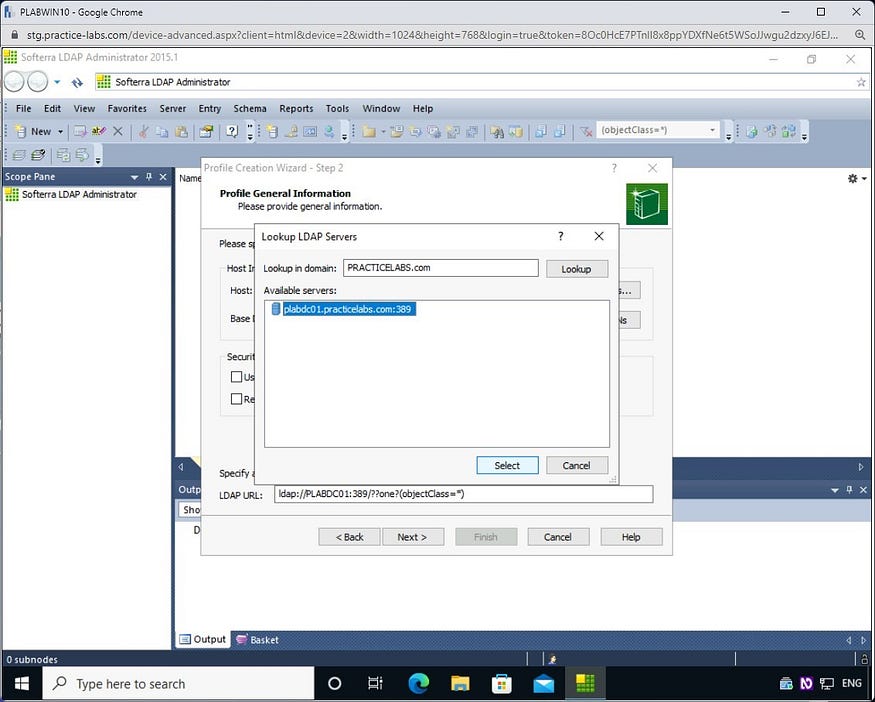

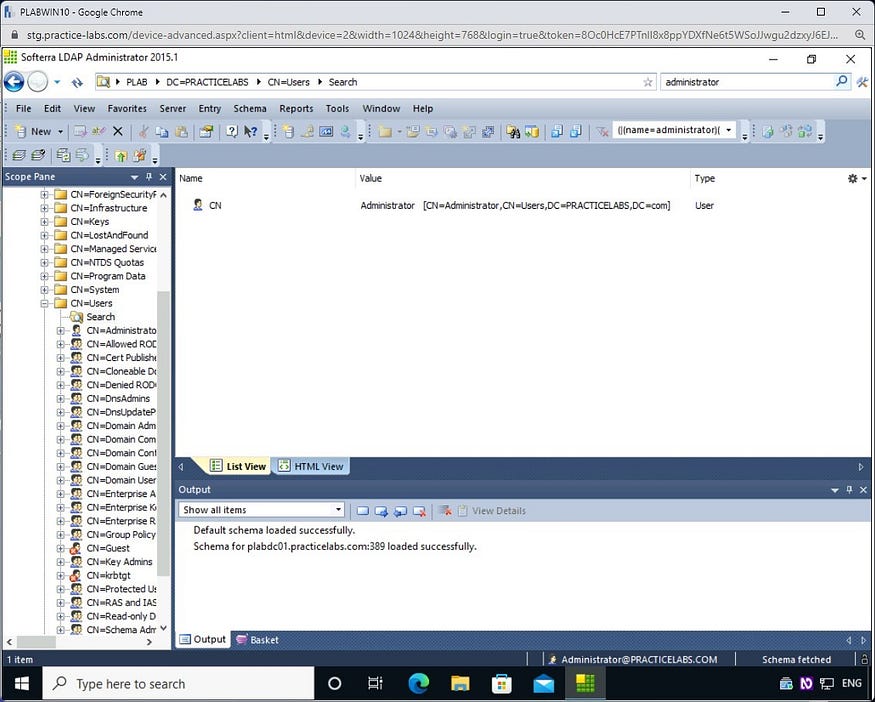

- Perform LDAP Enumeration Using Softerra LDAP Administrator
After completing this module, you will have further knowledge of:
- Defining Enumeration
- Enumeration Methods
- TCP and UDP Port Enumeration
- Methods to Prevent SNMP Enumeration
- Methods to Prevent LDAP Enumeration
Lab Duration
It will take approximately 1 hour to complete this lab.
Exercise 1 — Enumeration Concepts
Enumeration is a method of gathering information by connecting directly with the systems. The attacker connects with the system and identifies the vulnerabilities that can be exploited to access the system.
In the enumeration phase, an attacker attempts to gain information about various network components. The core intent of enumeration is to look for possible attack vectors which can exploit one or more systems. The attacker can enumerate the following:
- Network shares
- Routing tables
- Simple Network Management Protocol (SNMP)
- Fully Qualified Domain Name (FQDN)
- System names
- User and group names
- Applications
- Services
In this exercise, you will learn about the enumeration concepts.
Learning Outcomes
After completing this exercise, you will have further knowledge of:
- Define Enumeration
- Enumeration Methods
- TCP and UDP Port Enumeration
Your Devices
This exercise contains supporting materials for Ethical Hacker v11.
Enumeration Methods
An attacker can use various enumeration methods to collect information about a target, individual system, user, or organization. There is no hard and fast rule about selecting a specific method; instead, it is mainly driven by a situation or the attacker’s objective that they may choose a specific enumeration method.
Let’s look at some key methods:
- Enumerate usernames from email IDs: understand the naming convention. For example, [email protected].
- Enumerate default credentials: Almost all network appliances and applications have default credentials. Users often do not change default credentials, making things easier for an attacker. After an attacker has determined the type of application or device, it is easy to find the default credentials on the Internet.
- Enumerate Active Directory: An attacker can enumerate the Active Directory using tools such as KerBrute. Enumerating the usernames can help in password spraying attacks as the attacker has valid usernames.
- Enumerate DNS servers: An attacker can enumerate the zone information if the DNS servers are not properly configured for zone transfer. For example, suppose a DNS server is configured to transfer zone information to any DNS server. In that case, an attacker can leverage this and replicate all zone information to a rogue DNS server.
- Enumerate user’s groups: If the target network is a Windows domain, it is easy to determine groups to which the user belongs. This can be done using different methods, such as the command line.
- Enumerate using SNMP: An attacker can enumerate the devices managed using SNMP. They can enumerate information, such as usernames, passwords, and groups.
TCP and UDP Port Enumeration
In a network, several services use either TCP or UDP ports. These ports can be enumerated to extract different types of information.
Here are some of the key TCP and UDP ports that becomes the target for enumeration:
- TCP 20/21: File Transfer Protocol (FTP)
- TCP 22: Secure Shell (SSH)
- TCP 23: Telnet
- TCP 25: SMTP
- TCP/UDP 53: DNS Zone Transfer
- UDP 69: Trivial File Transfer Protocol (TFTP)
- UDP 123: Network Time Protocol
- TCP/UDP 135: Microsoft RPC Endpoint Mapper
- UDP 137: NetBIOS Name Service
- TCP 139: NetBIOS Session Service
- UDP 161: SNMP
- TCP/UDP 162: SNMP Trap
- TCP/UDP 389: LDAP
- TCP/UDP 445: SMB Over TCP
- UDP 500: Internet Key Exchange (IKE)
- TCP 2049: Network File System (NFS)
Exercise 2 — NetBIOS Enumeration
NetBIOS enumeration can reveal a great deal of information to an attacker. With the NetBIOS enumeration, the attacker can gain sensitive information about the domain systems by listing them, network shares, and network passwords. NetBIOS enumeration can be performed on a file and printer sharing feature enabled.
In this exercise, you will learn to perform NetBIOS enumeration.
Learning Outcomes
After completing this exercise, you will be able to:
- Use SuperScan for NetBIOS Enumeration
- Perform NetBIOS Enumeration Using Nbtstat
- Perform NetBIOS Enumeration using Nmap
Your Devices
You will be using the following devices in this lab. Please power these on now.
PLABDC01Domain Controller192.168.0.1/24PLABWIN10Domain MemberWorkstation192.168.0.3/24PLABKALI01Domain MemberWorkstation192.168.0.5/24PLABDM01Domain Member Server192.168.0.2/24
- PLABDC01
Windows Server 2019 — Domain Server192.168.0.1/24
- PLABDM01
Windows Server 2019 — Domain Member192.168.0.2/24
- PLABWIN10
Windows 10 — Workstation192.168.0.3/24
- PLABKALI01
Kali 2022.1 — Linux Kali Workstation192.168.0.5/24
Task 1 — Use SuperScan for NetBIOS Enumeration
SuperScan is a tool that you can use to scan ports, ping a system, or resolve machine names. SuperScan has the following capabilities:
- NetBIOS information
- User and Group Accounts
- Network shares
- Services status
To use SuperScan, for NetBIOS enumeration, perform the following steps:
Step 1

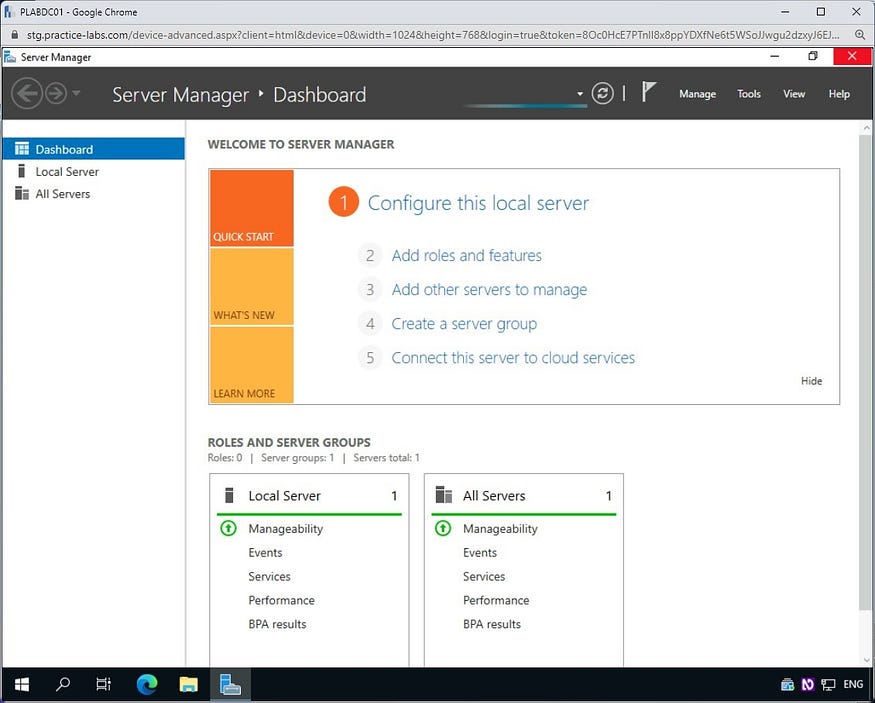

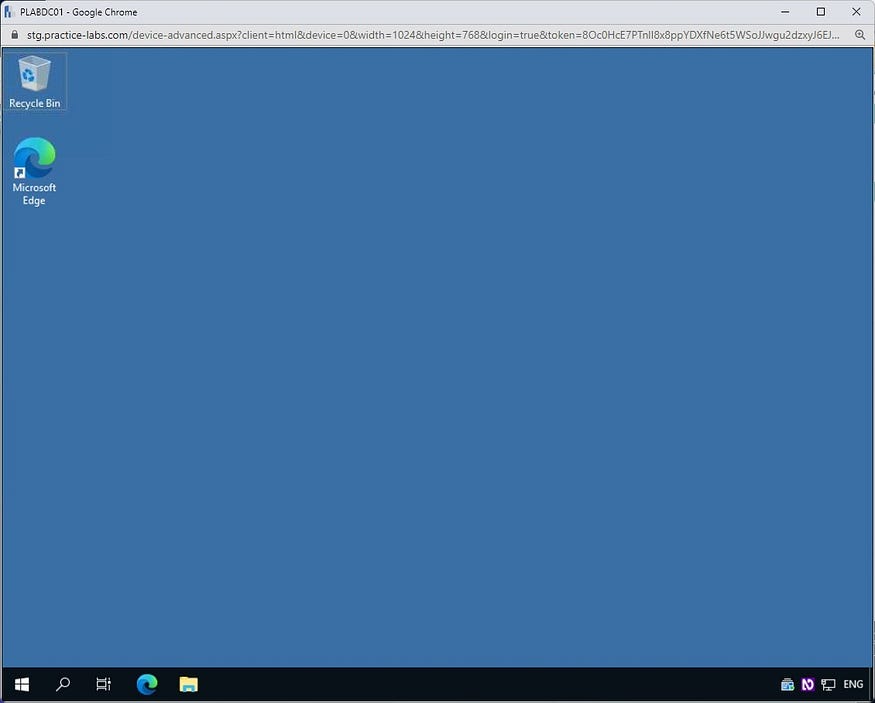

Ensure you have powered on all devices listed in the introduction and connect to PLABDC01.
Close the Server Manager window.
Step 2

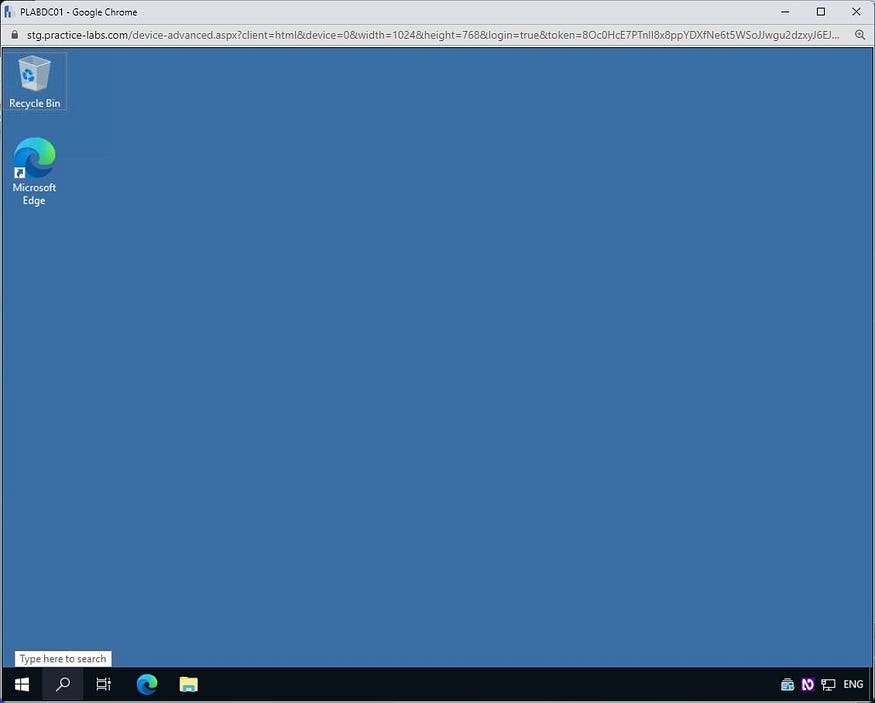

Before proceeding, you will need to disable the firewall. Click the Type here to search textbox.
Step 3

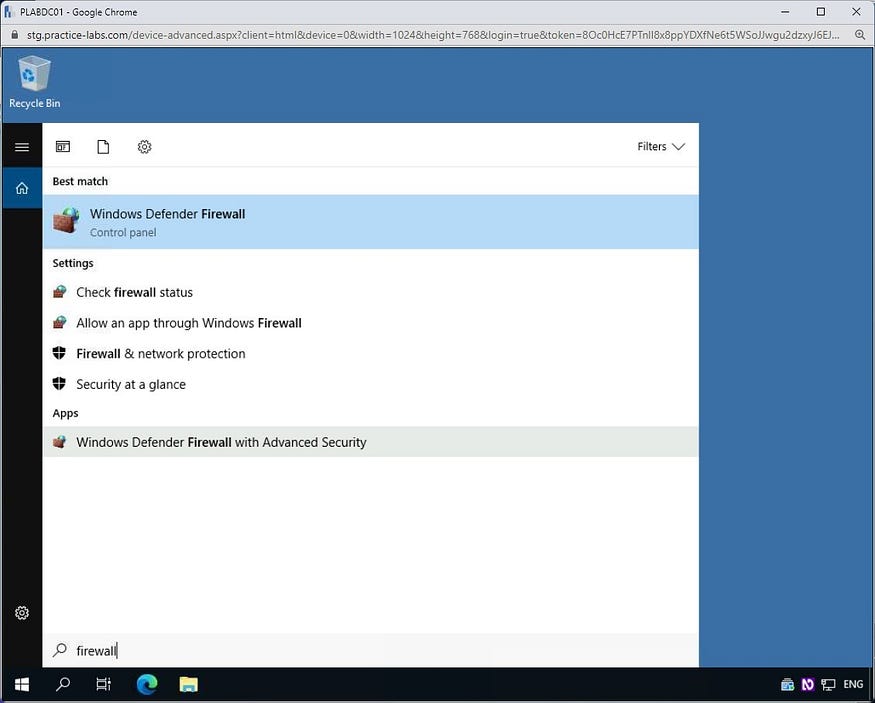

In the Type here to search text box, type the following:
firewall
From the bottom of the search results, click Windows Firewall with Advanced Security, under Apps.
Step 4

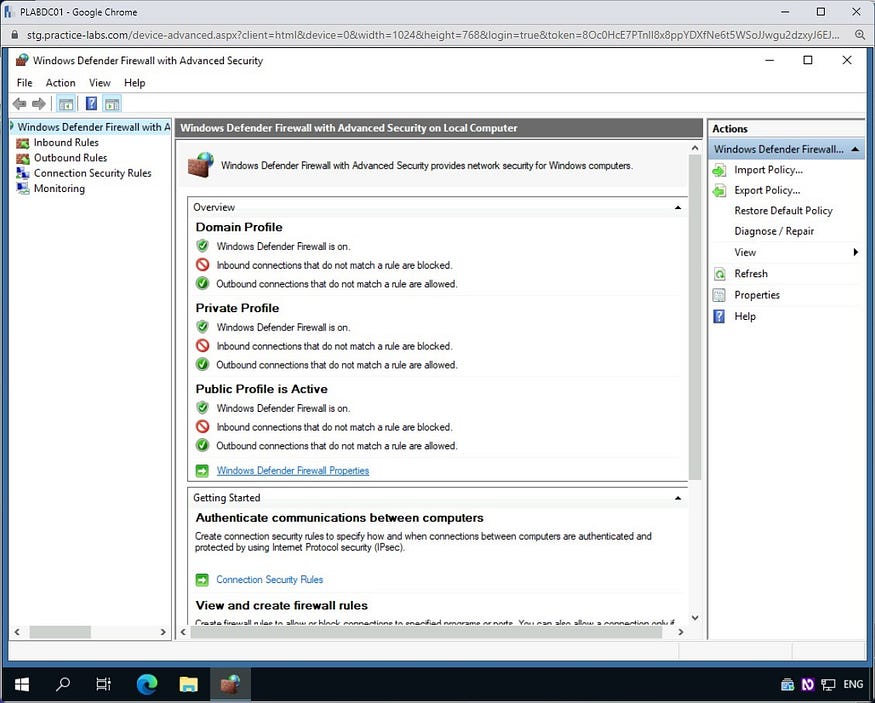

Click the Windows Defender Firewall Properties link in the middle pane.
The Windows Defender Firewall with Advanced Security window will then open. You will notice that only the Domain Profile is Active.
Step 5

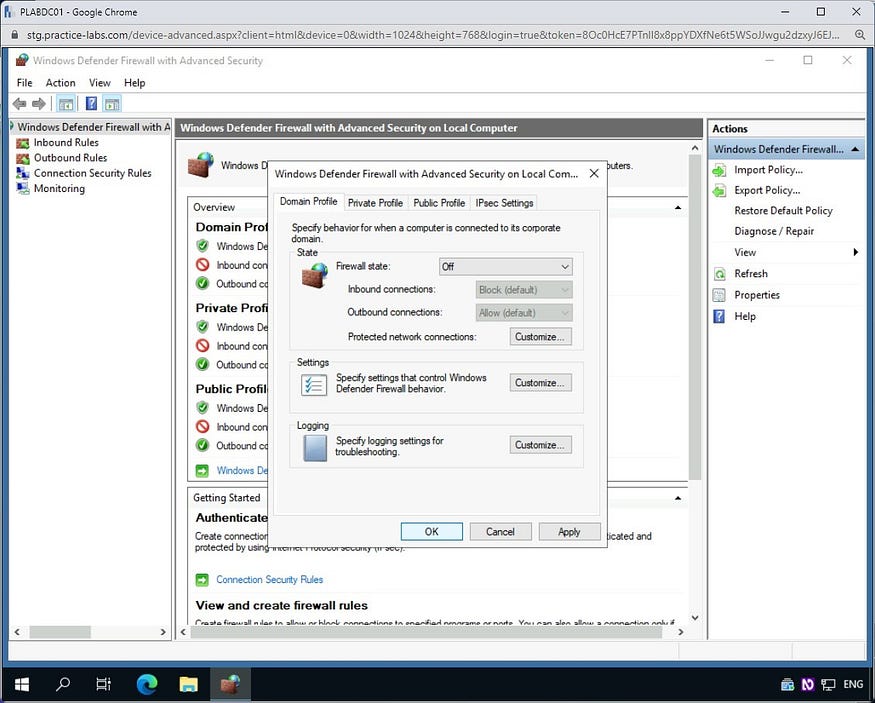

On the Windows Defender Firewall with Advanced Security on Local Computer Properties dialog box, the Domain Profile tab is displayed.

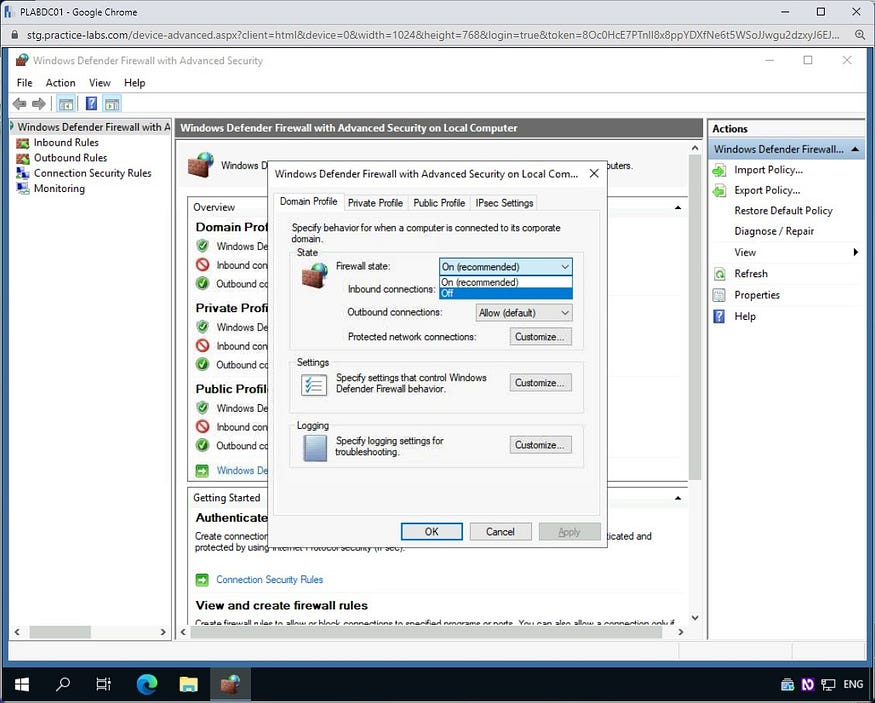

Click the Firewall state drop-down and select Off. You need to change the Firewall state to Off.
Alert: Repeat the same steps to turn off the firewall for Private and Public profiles.
Step 6
After the Firewall state is set to Off, click OK.
Step 7
Close the Windows Defender Firewall with Advanced Security window.
Alert: Repeat the above steps for all three profiles on both PLABDM01 and PLABDC01.Note: You would not do this in a production environment as it exposes the device to several threats.
Step 8

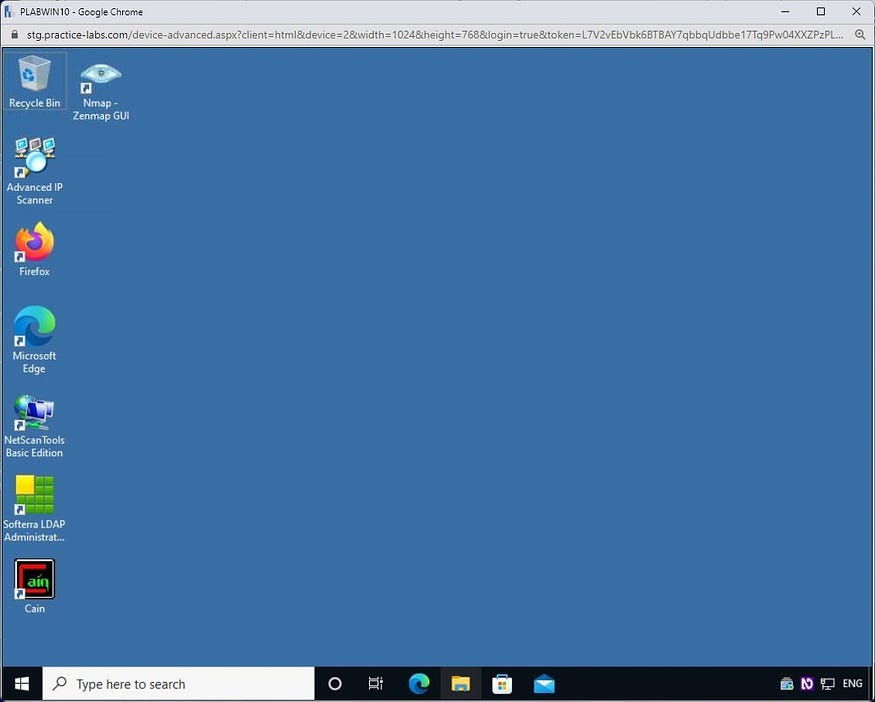

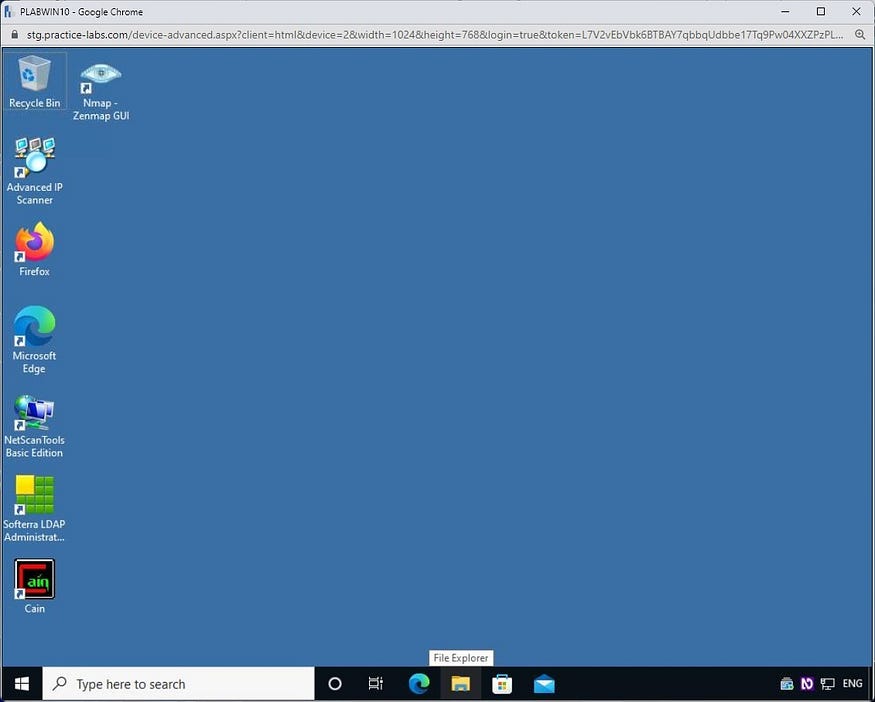

Switch to PLABWIN10.
Click the File Explorer icon in the taskbar.
Step 9

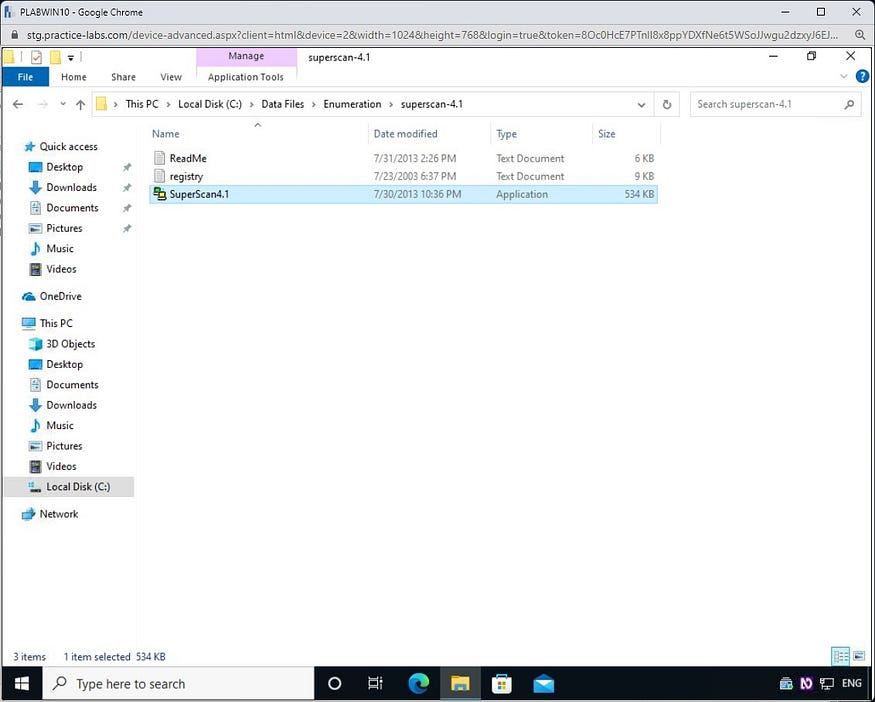

The File Explorer window opens. Navigate to the Local Disk ©: > Data Files > Enumeration > Superscan-4.1 folder.
Double-click the SuperScan4.1 application.
Step 10

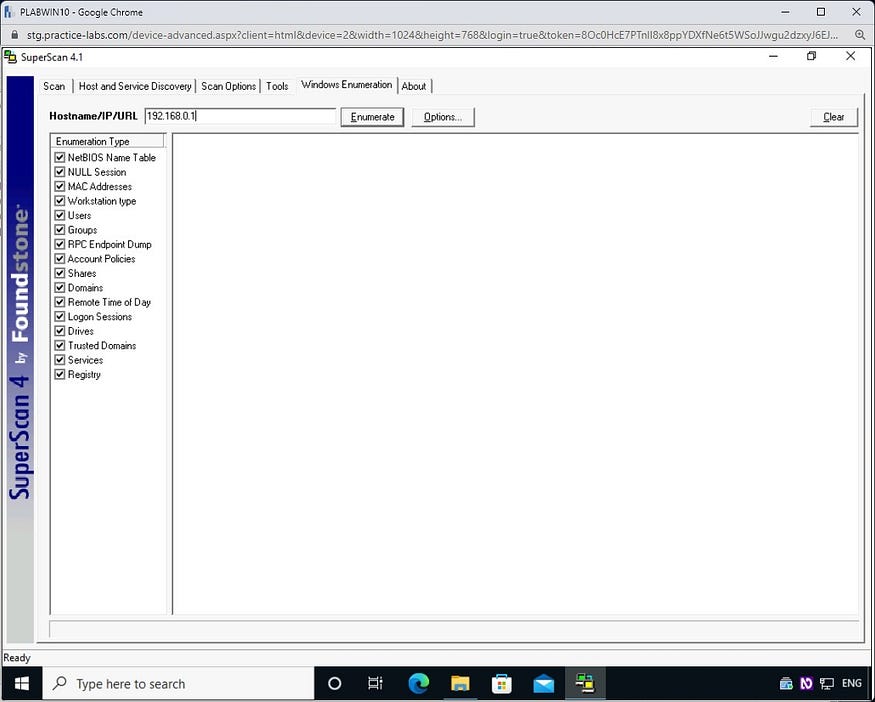

The SuperScan 4.1 window is displayed.
Click the Windows Enumeration tab.
Step 11
There are two panes in the Windows Enumeration tab. The left pane contains the Enumeration types, and the right pane will display the enumeration result.
In the Hostname/IP/URL text box, type the following IP address:
192.168.0.1
Click Enumerate.
Step 12

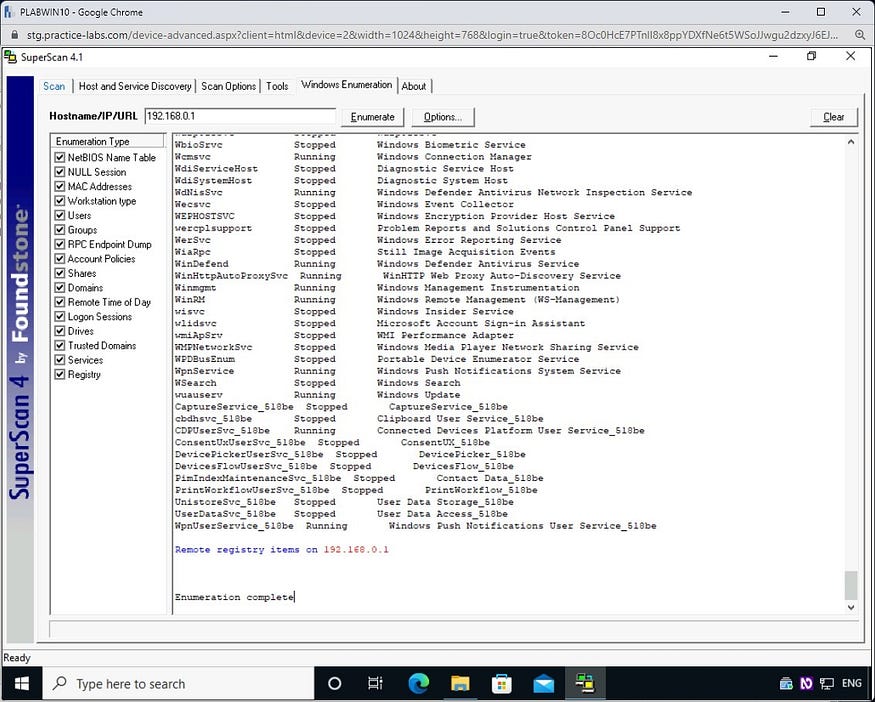

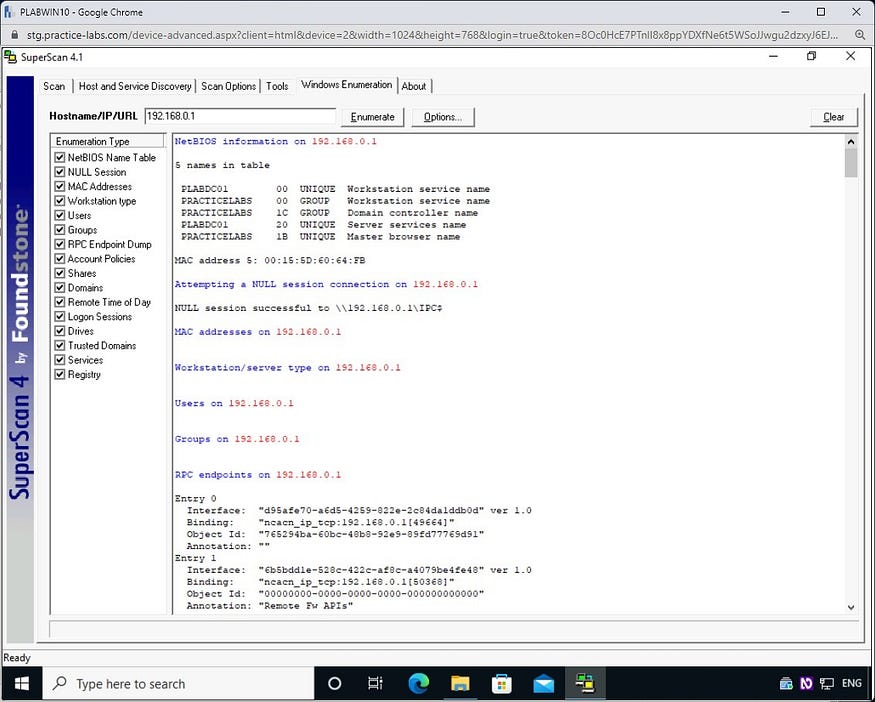

The results are displayed in the right pane.
Scroll up to view the results from the beginning.
Step 13
You can view the complete results by scrolling down.
Step 14
Using SuperScan, you can also perform a network scan.
From the SuperScan 4.1 window, select the Scan tab.
Step 15
On the Scan tab, in the Start IP text box, type the following IP address:
192.168.0.1
Click inside the End IP text box. Notice that the End IP text information is automatically populated with the following IP address:
192.168.0.254
Click the middle right arrow to add information in the right text box.
Step 16

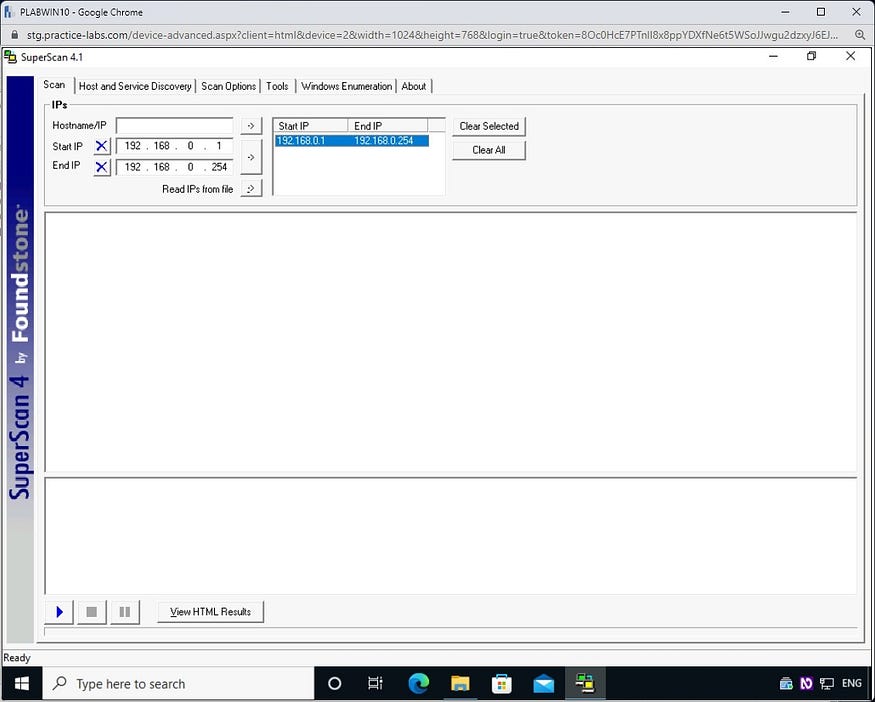

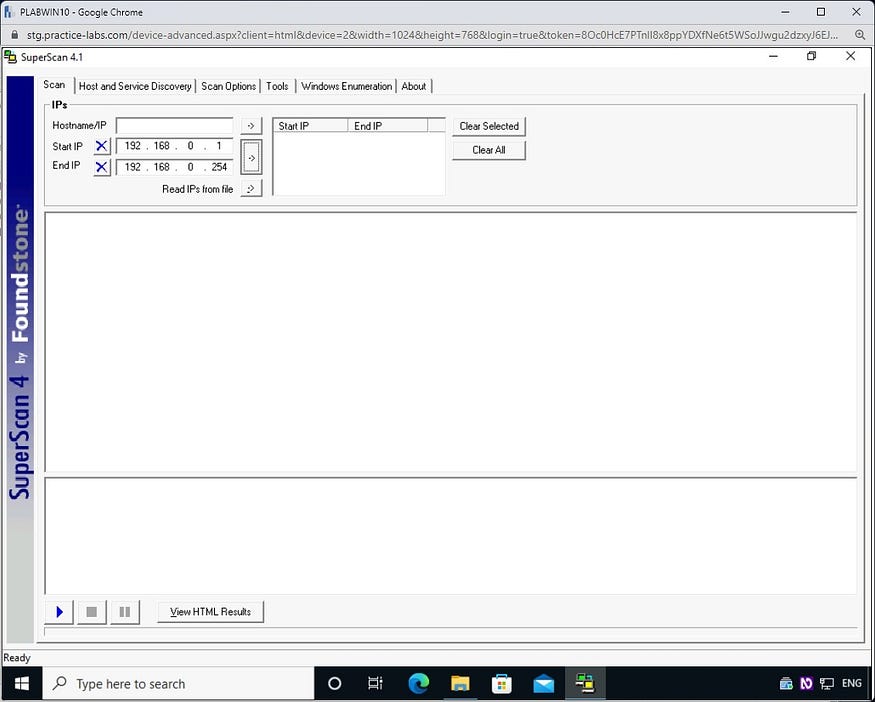

The IP address range is now added to the Start and End IP text box.
Step 17
Click the Play button in the bottom left-hand corner.
Step 18

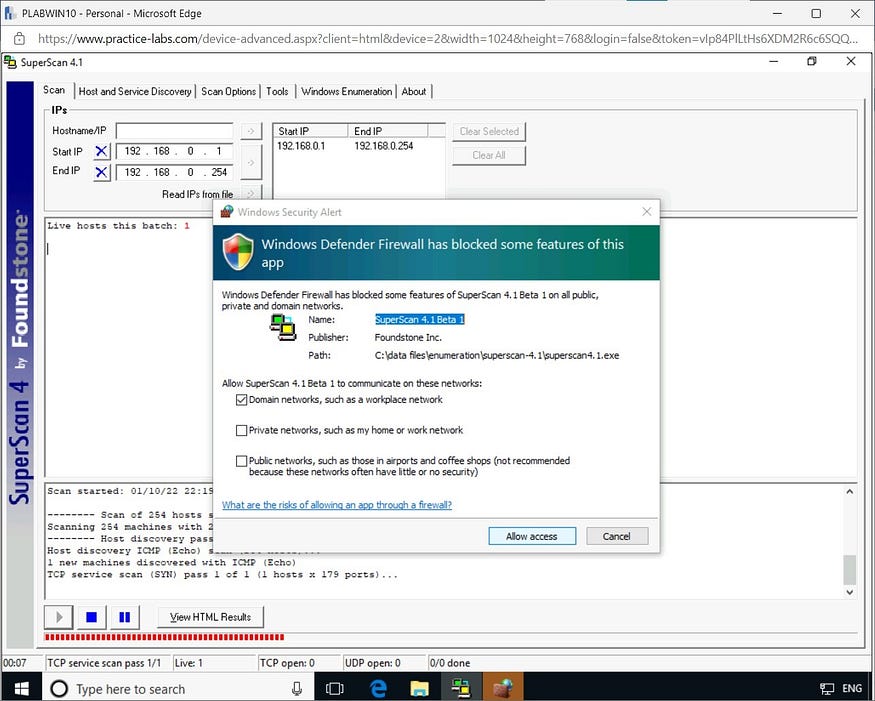

On the Windows Security Alert dialog box, click Allow access.
Note: This alert may not appear.
Step 19

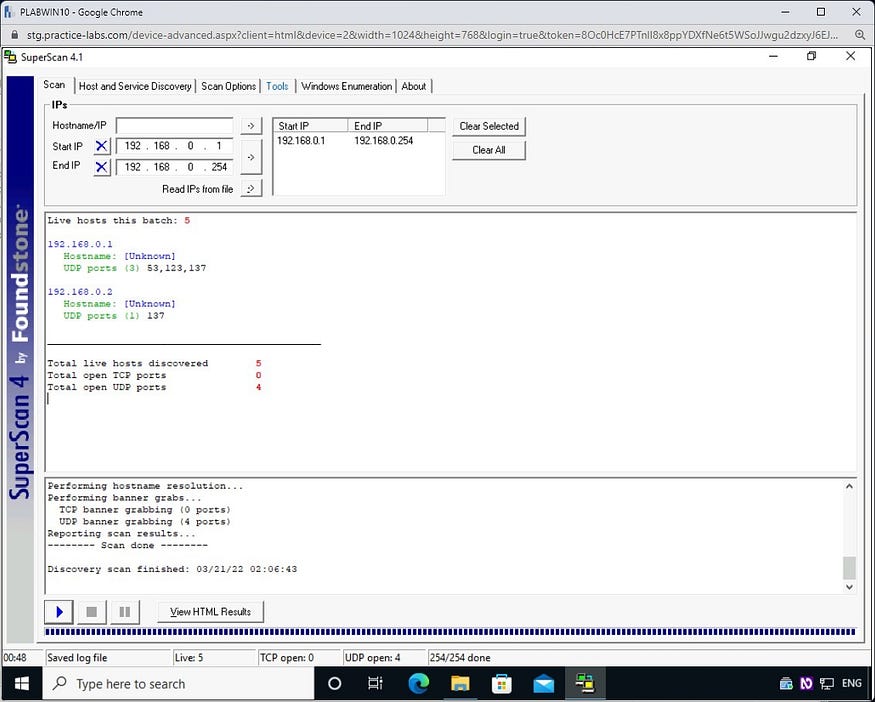

Note that the network scan of the defined IP address range is started.
After the scan is completed, a detailed report is displayed when the progress bar has reached the end.
You need to read through the generated report by SuperScan.
Step 20
Click the Tools tab.
Step 21

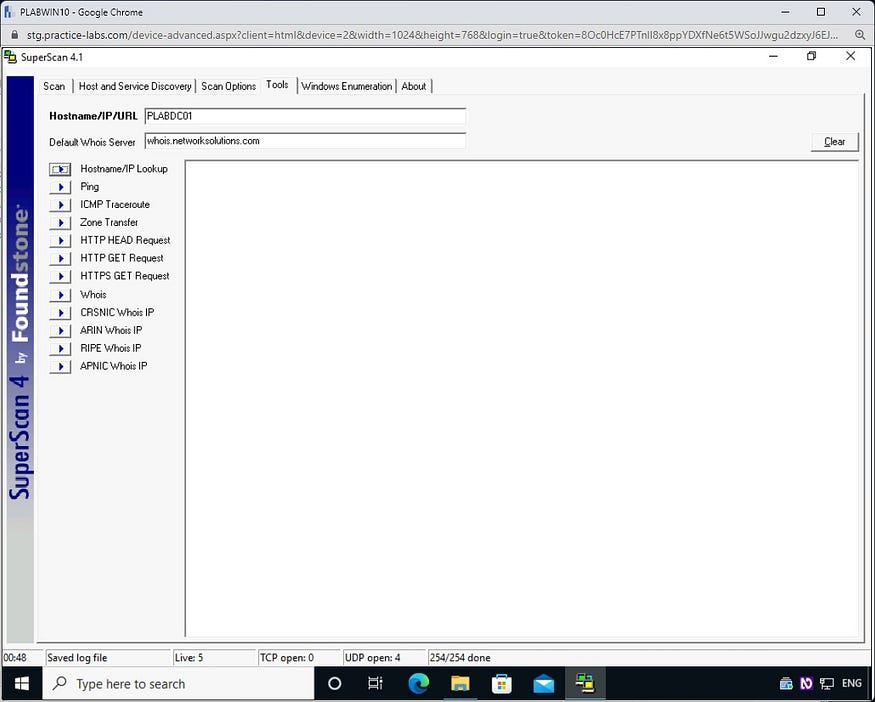

On the Tools tab, click inside the Hostname/IP/URL textbox, type the following name:
PLABDC01
Click the Hostname/IP Lookup button.
Step 22
Note that the hostname command results will now be resolved to its IP address in the right pane.
Note: You can try the remaining options if time permits.
Close the SuperScan 4.1 window.
Close all open windows.
Task 2 — Perform NetBIOS Enumeration Using Nbtstat
In Windows, you have a utility named Nbtstat that helps you obtain NetBIOS information, such as NetBIOS name tables and NetBIOS name cache. It is a pretty easy-to-use utility with a few parameters.
In this task, you will learn to perform NetBIOS enumeration using Nbtstat.
Step 1

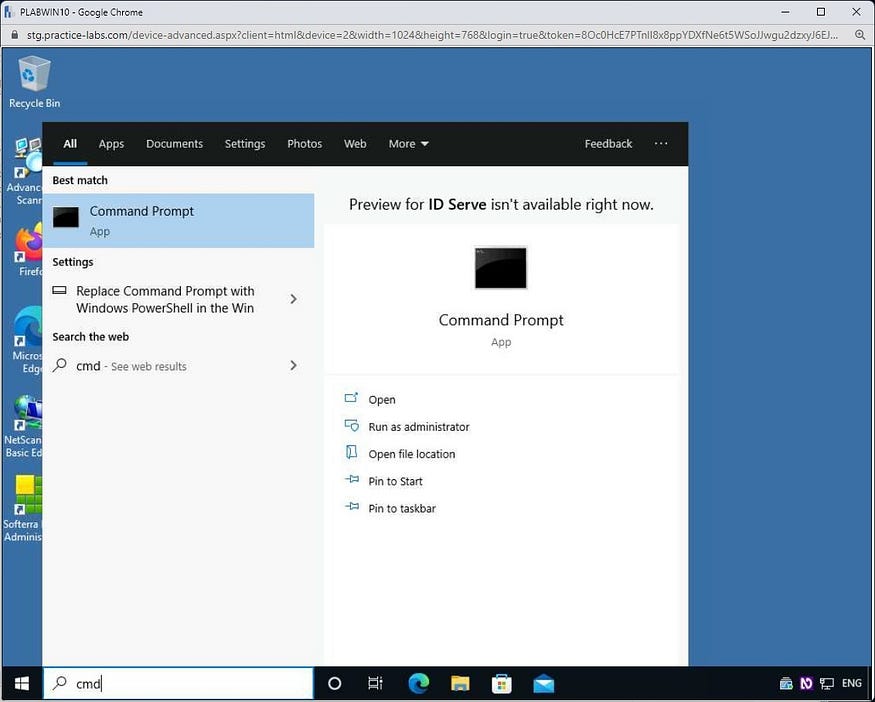

Connect to PLABWIN10. In the Type here to search textbox, type the following command:
cmd
From the search results, click Command Prompt.
Step 2
In the command prompt window, type the following command:
nbtstat -a 192.168.0.1
Press Enter. The -a parameter will display the NetBIOS name table from the system’s IP address that you have specified.
Step 3
The NetBIOS name table from the remote system is displayed.
Step 4
Clear the screen using the following command:
cls

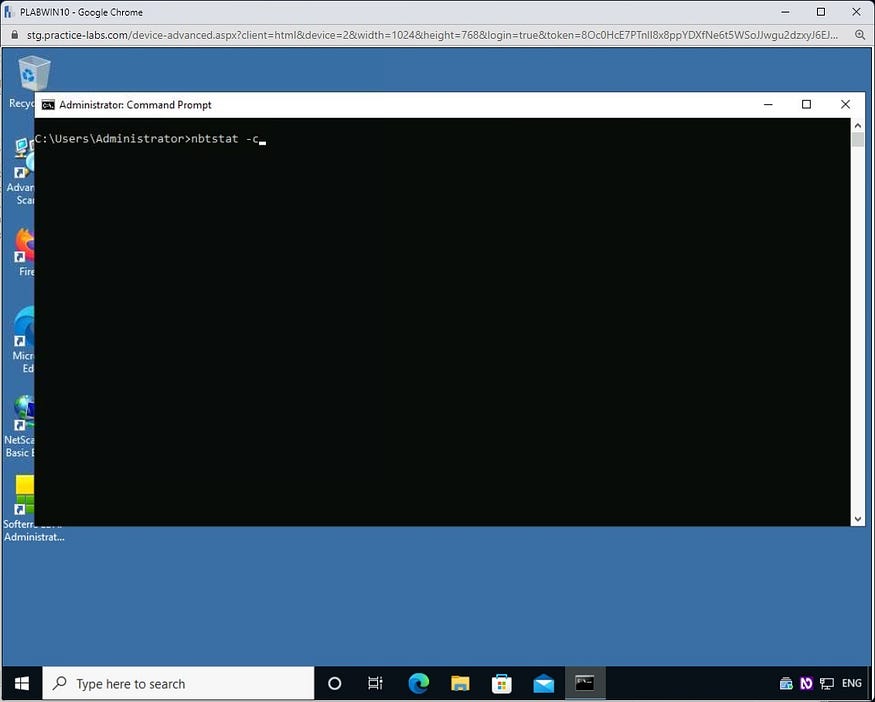

You can also display the name cache along with the name table. To do this, type the following command:
nbtstat -c
Press Enter. The -c parameter displays the name cache.
Step 5
The output displays the cache name table. It contains the name and IP address of the remote system, which is PLABDC01.
Close the command prompt window.
Task 3 — Perform NetBIOS Enumeration using Nmap
Nmap, other than the command, contains a Nmap Scripting Engine (NSE) used to execute ready-made scripts available within it. NSE also contains a script that helps you perform NetBIOS enumeration and can help you determine the NetBIOS names and MAC addresses.
In this task, you will learn to perform NetBIOS Enumeration using Nmap.
Step 1
Connect to PLABKALI01.
Log in using the following credentials:
Username:
root
Password:
Passw0rd

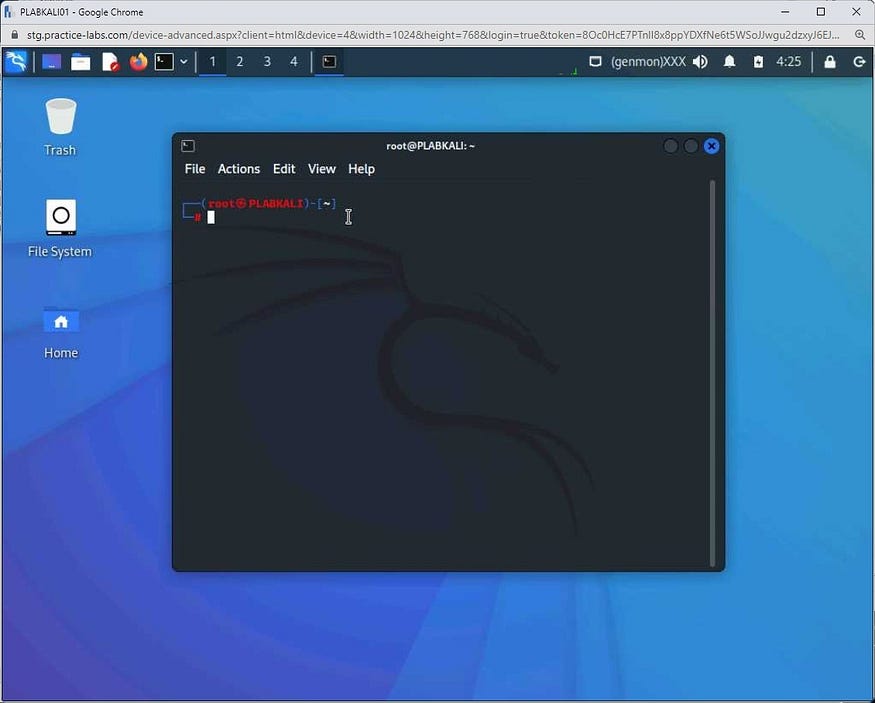

The desktop of PLABKALI01 is displayed.
Open a new terminal window by clicking the Terminal Emulator icon on the taskbar.
Step 2

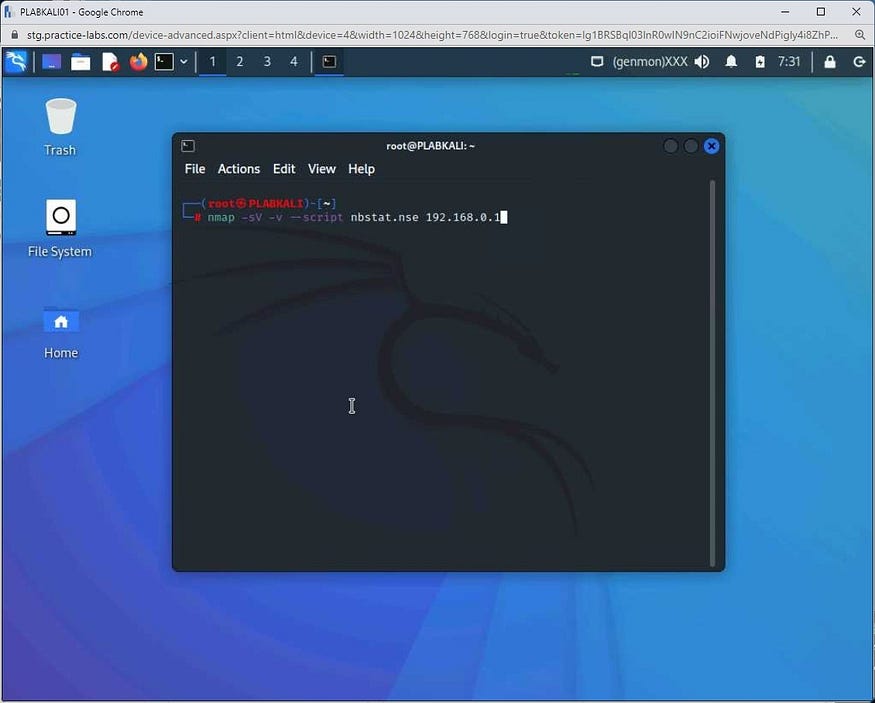

You need to use the nmap tool and execute the following command:
nmap -sV -v --script nbstat.nse 192.168.0.1
Press Enter.
The -sV parameter helps you determine the service versions. The -v parameter increases the verbosity. The — script parameter enables you to use the mentioned script.
Step 3
The nmap script execution starts.
Notice that it has already determined the open ports and found 13 services running.
Step 4

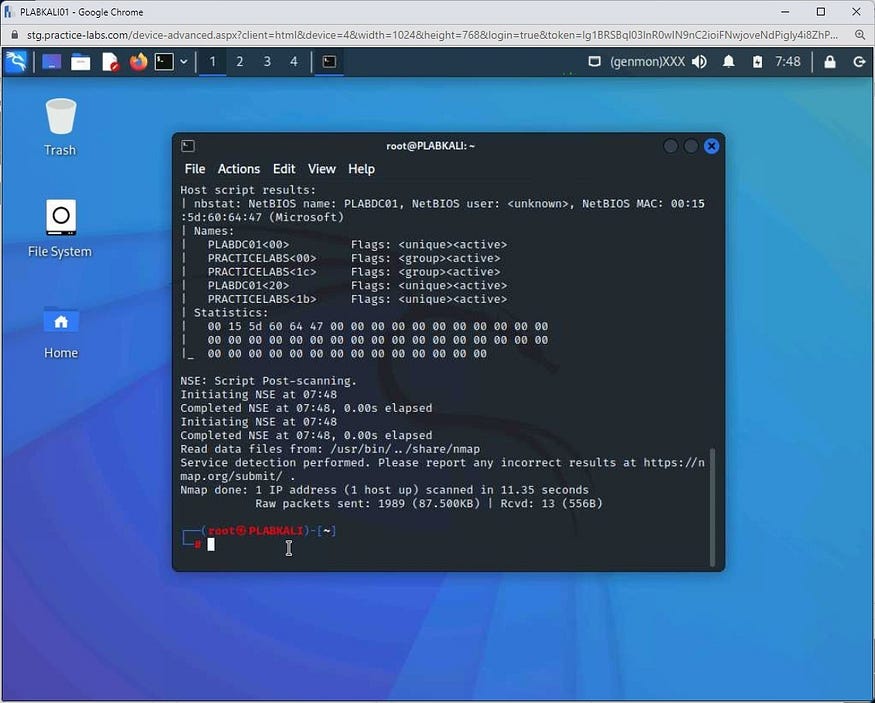

The nmap script execution completes and provides a great deal of information. It was able to determine the following information:
- System name
- NetBIOS MAC address
- Domain name
Exercise 3 — SNMP Enumeration
Several devices are configured to use the Simple Network Management Protocol (SNMP), which helps an administrator manage them and get their current status.
An attacker can perform SNMP enumeration by using the default community string and extracting a lot of information from the device. The information can include ARP and routing tables.
In this exercise, you will learn to perform SNMP enumeration.
Learning Outcomes
After completing this exercise, you will be able to:
- Perform SNMP Enumeration Using IP Network Browser
- Perform SNMP Enumeration Using Snmp-check
Your Devices
You will be using the following devices in this lab. Please power these on now.
PLABDC01Domain Controller192.168.0.1/24PLABWIN10Domain MemberWorkstation192.168.0.3/24PLABKALI01Domain MemberWorkstation192.168.0.5/24PLABDM01Domain Member Server192.168.0.2/24
- PLABDC01
Windows Server 2019 — Domain Server192.168.0.1/24
- PLABDM01
Windows Server 2019 — Domain Member192.168.0.2/24
- PLABWIN10
Windows 10 — Workstation192.168.0.3/24
- PLABKALI01
Kali 2022.1 — Linux Kali Workstation192.168.0.5/24
Task 1 — Installing SolarWinds Toolset Launch Pad
There are various tools available in the market for SNMP enumeration. Two examples include:
- SolarWind’s Toolset Launch Pad / IP Network Browser
- ManageEngine OpUtils
SolarWinds Toolset is a network discovery tool using ICMP or SNMP. First, the trial version of this tool this needs to be installed. To do this, perform the following steps:
Step 1
Ensure you have powered on all the devices listed in the introduction and connect to PLABWIN10.
Open File Explorer from the taskbar.
Step 2

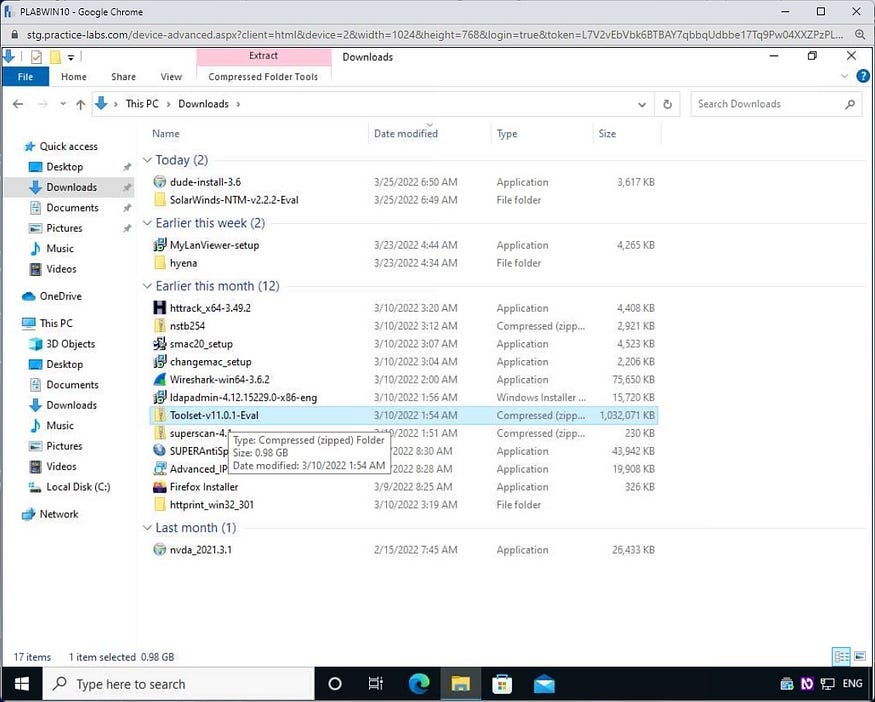

Navigate to the Downloads folder.
Step 3

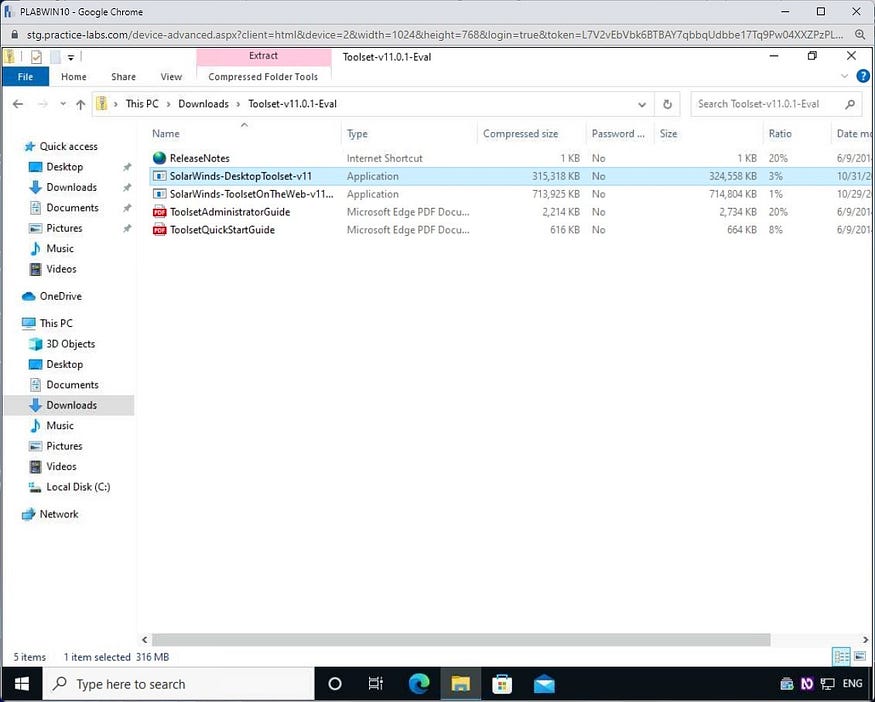

Scroll down the list and double-click on the Toolset-v11.01-Eval folder.
Step 4
Double click the SolarWinds-DesktopToolset-v11 executable to begin installation of Toolset Launch Pad.
Step 5

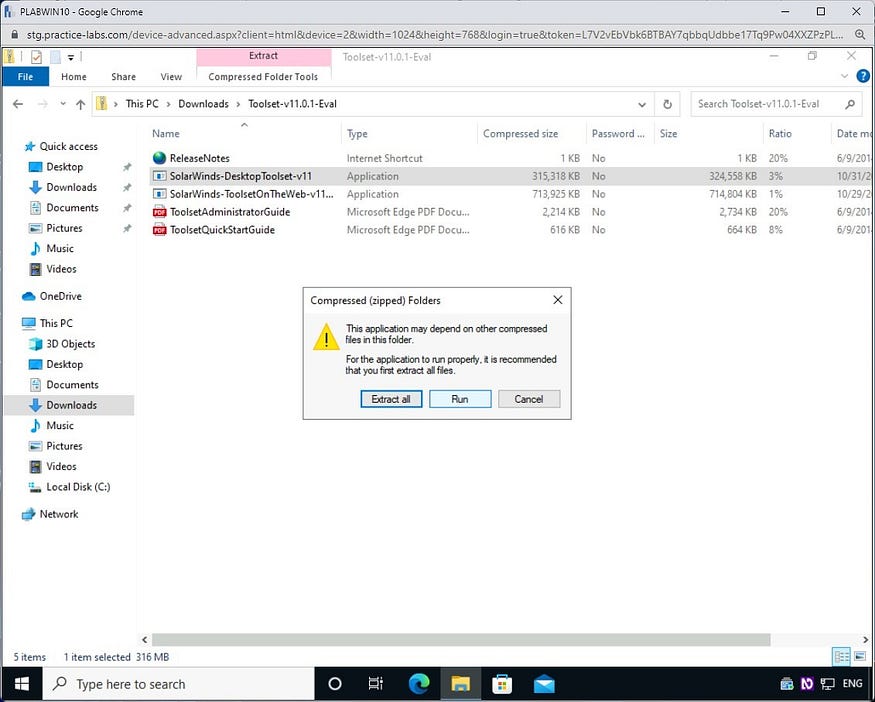

On the Compressed (zipped) Folders dialogue box, click Run.
Step 6

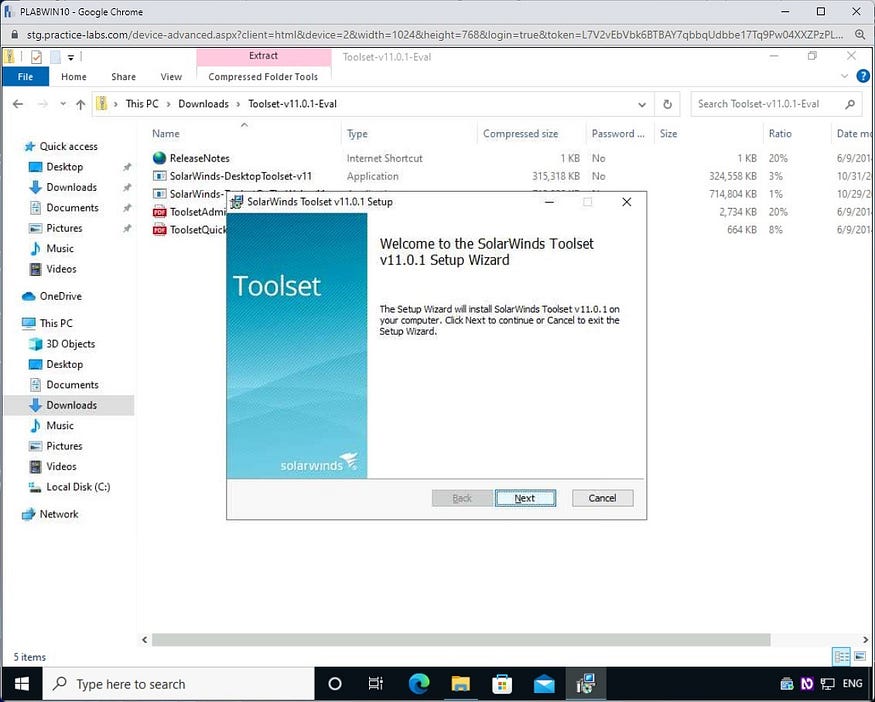

The SolarWinds Toolset v11.0.1 Setup window will display after a few moments.
Click Next.
Step 7

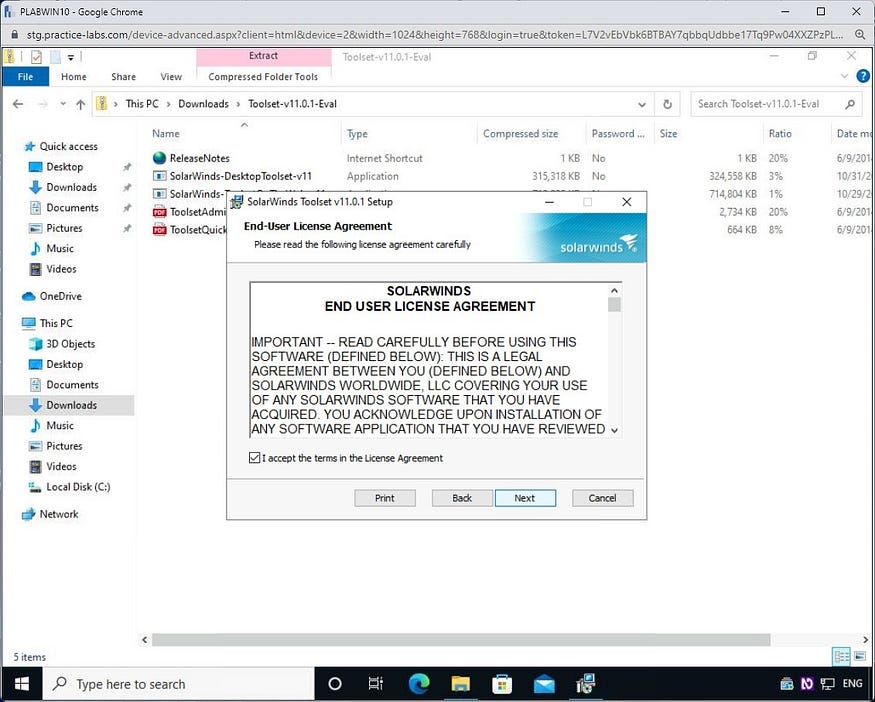

On the End-User Licence Agreement page, check the I accept the terms in the Licence Agreement checkbox and then click Next.
Step 8
On the Destination Folder page, leave the default option and click Next.
Step 9

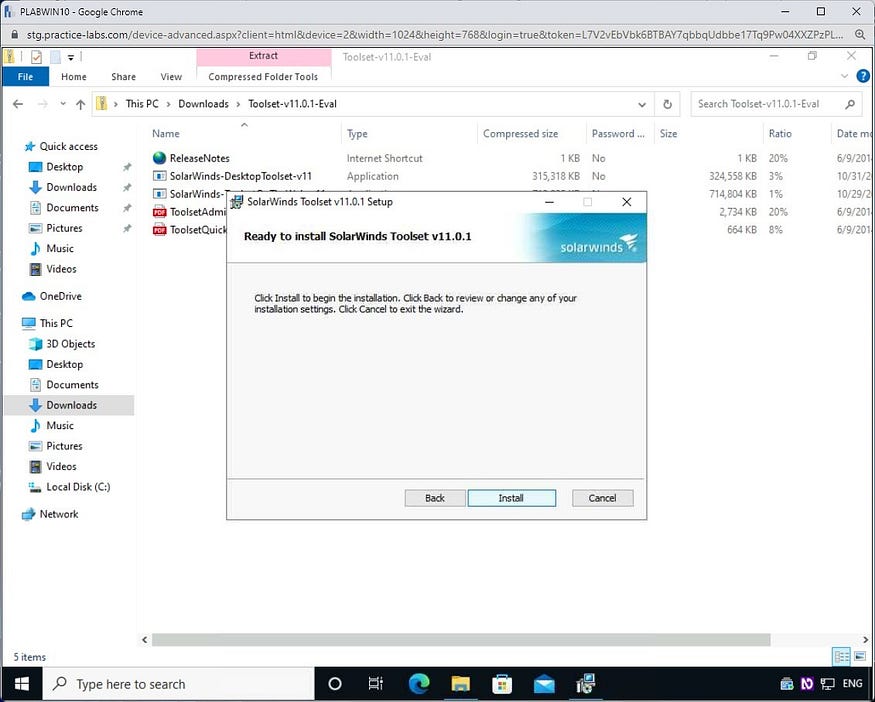

On the Ready to Install SolarWinds Toolset v11.0.1 page, click Install.
Step 10

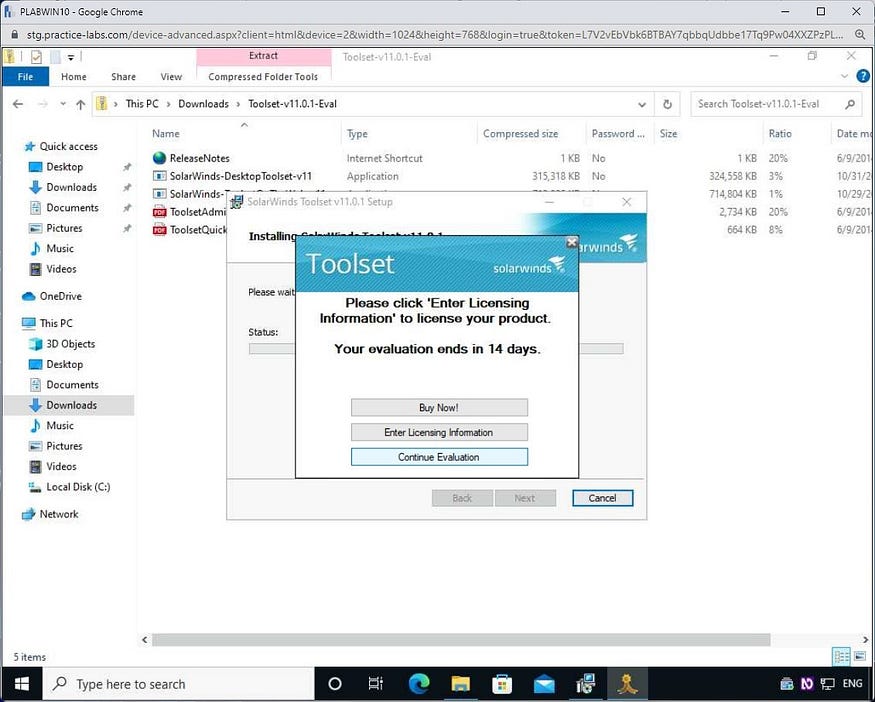

After a few minutes, the Toolset licensing window will appear.
Click Continue Evaluation.
Step 11

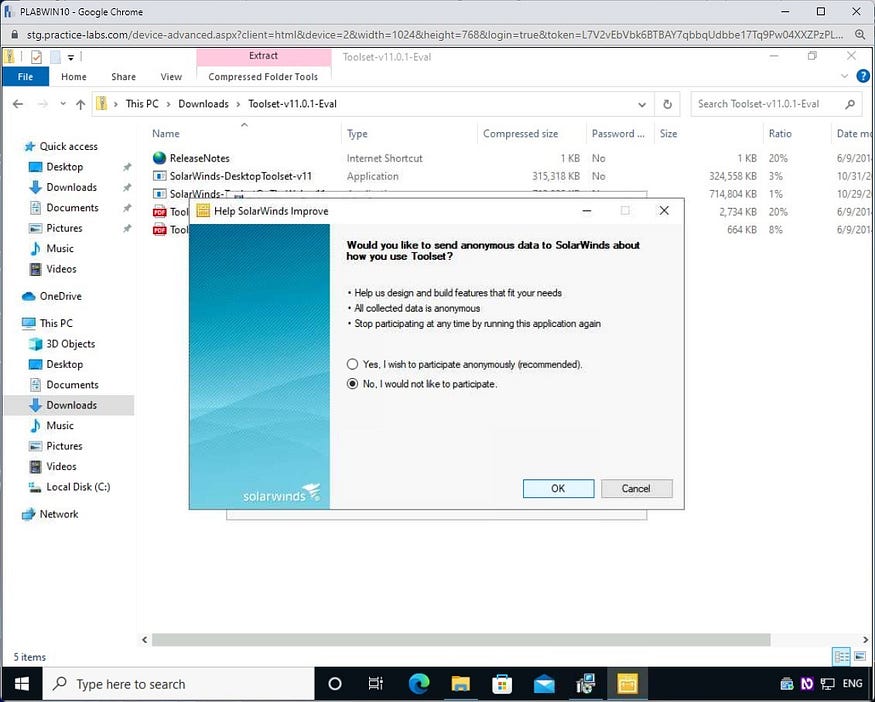

On the Help SolarWinds Improve page, select the No, I would not like to participate checkbox and click OK.
Note: A window may also appear to state that SolarWinds is installing free tools. Please allow this to complete.
Step 12
Finally, on the Completed SolarWinds Toolset v11.0.1 Setup Wizard page, click Finish.
Close all open windows.
Task 2 — Perform SNMP Enumeration Using SolarWinds Toolset Launch Pad
Now that SolarWinds Toolset Launch Pad has been installed, the tool can be used for SNMP enumeration. To do this, perform the following steps:
Step 1
In the Type here to search textbox, type the following:
Toolset
From the search results, click Toolset Launch Pad.
Step 2

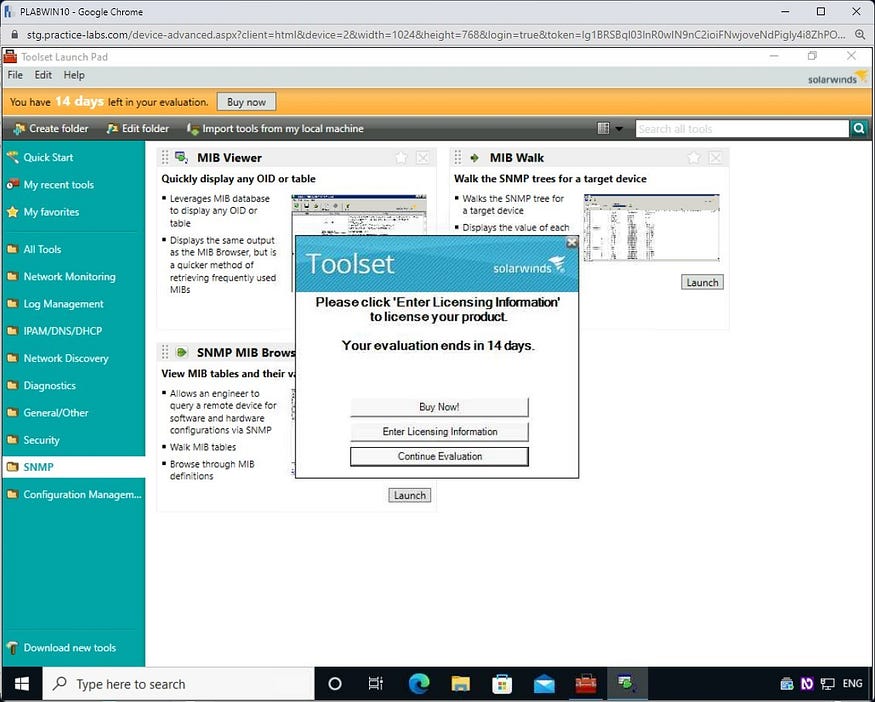

The Toolset dialog box is displayed.
Click Continue Evaluation.
Step 3

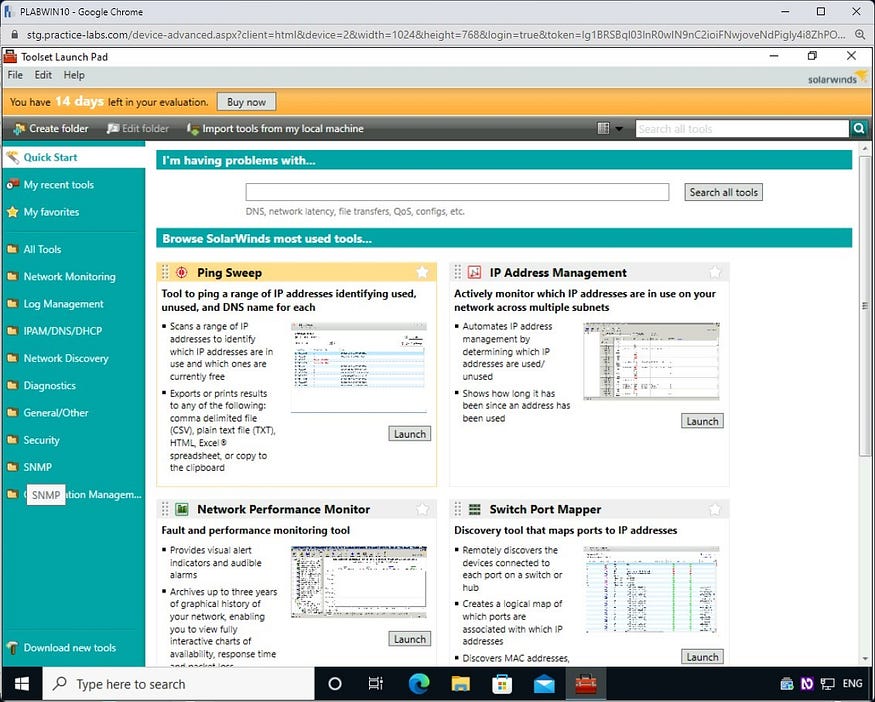

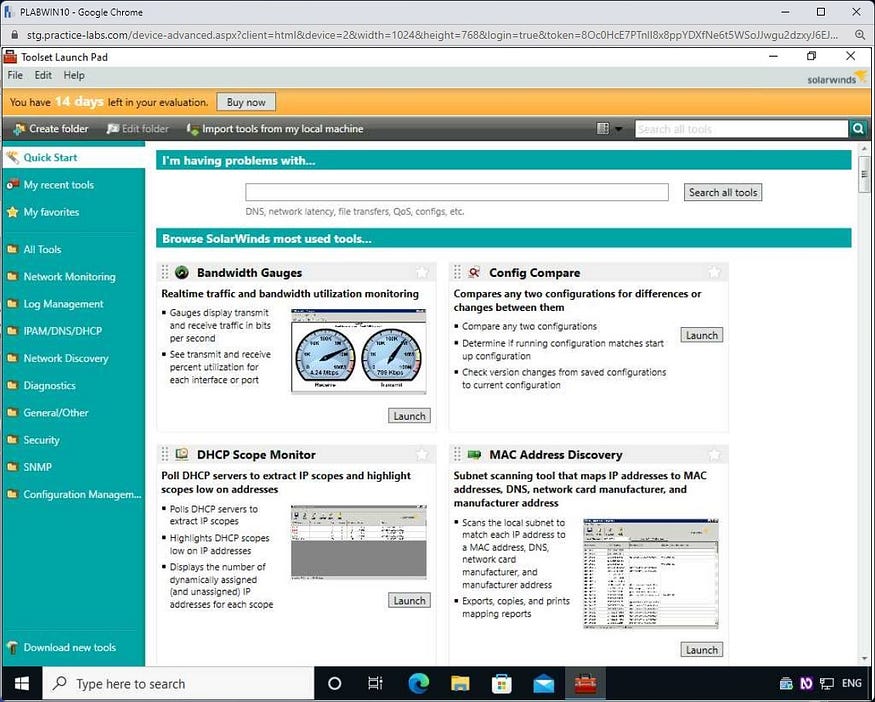

The Toolset Launch pad is displayed
Step 4
Before performing SNMP enumeration, you need to ensure that the target machine is set to accept requests.
In this task, you will configure PLABDC01 for accepting the requests.
Connect to PLABDC01. The desktop is displayed.
Step 5

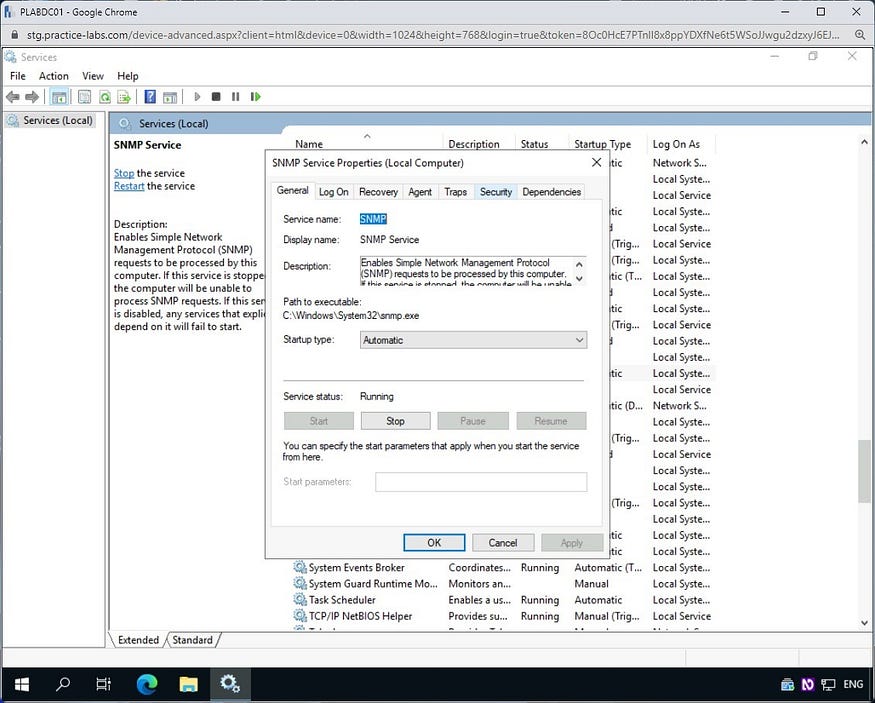

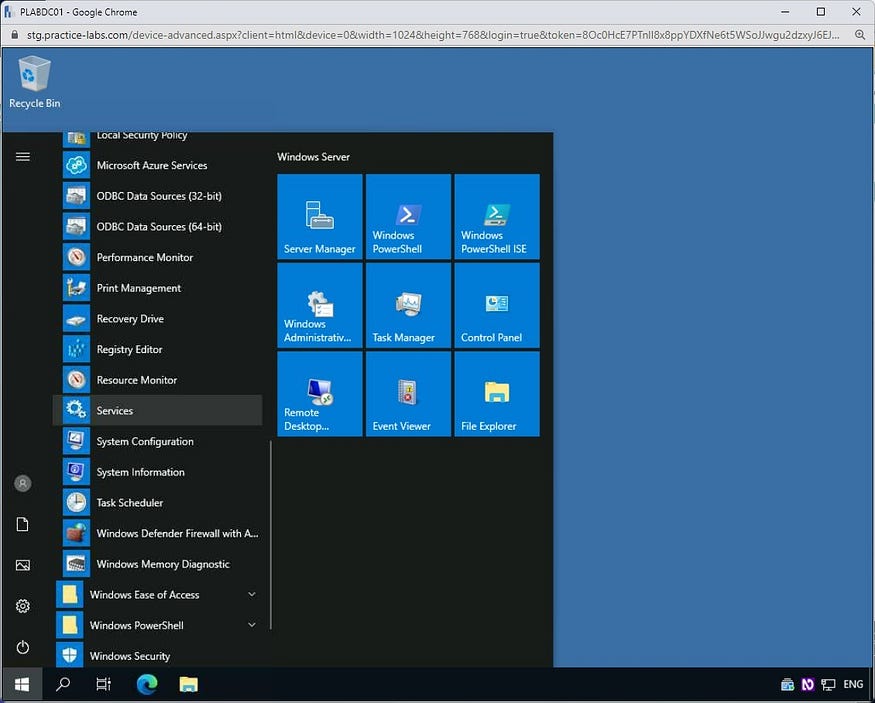

Click the Start charm, click Windows Administrative Tools, and select Services.

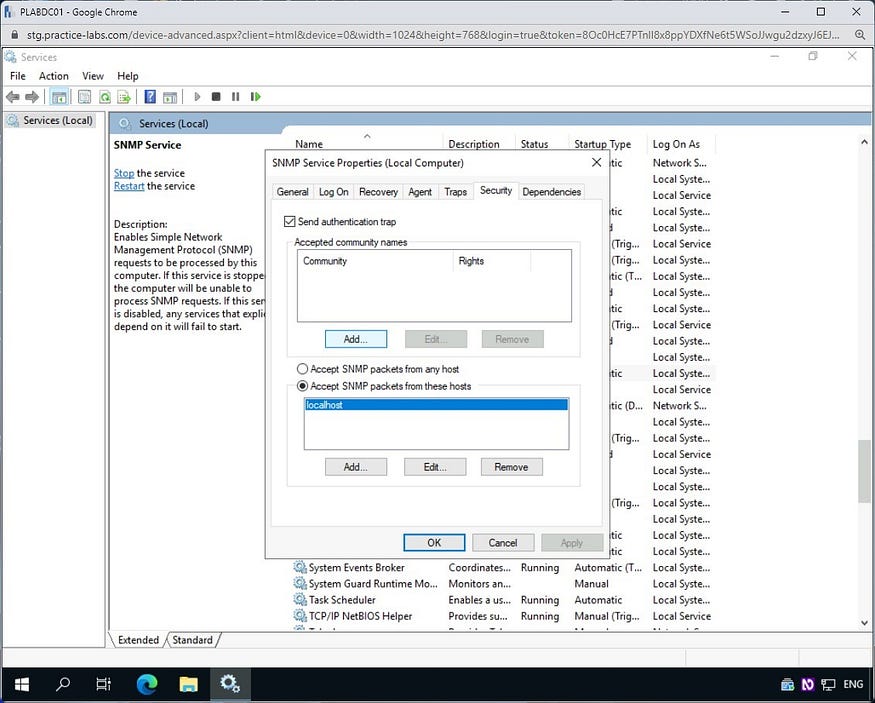

Step 6

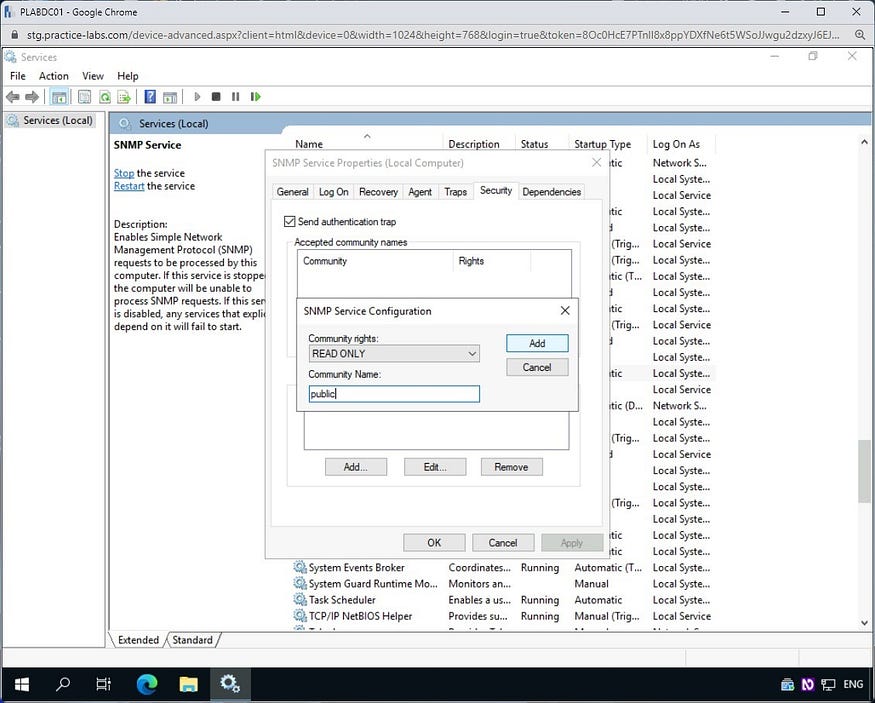

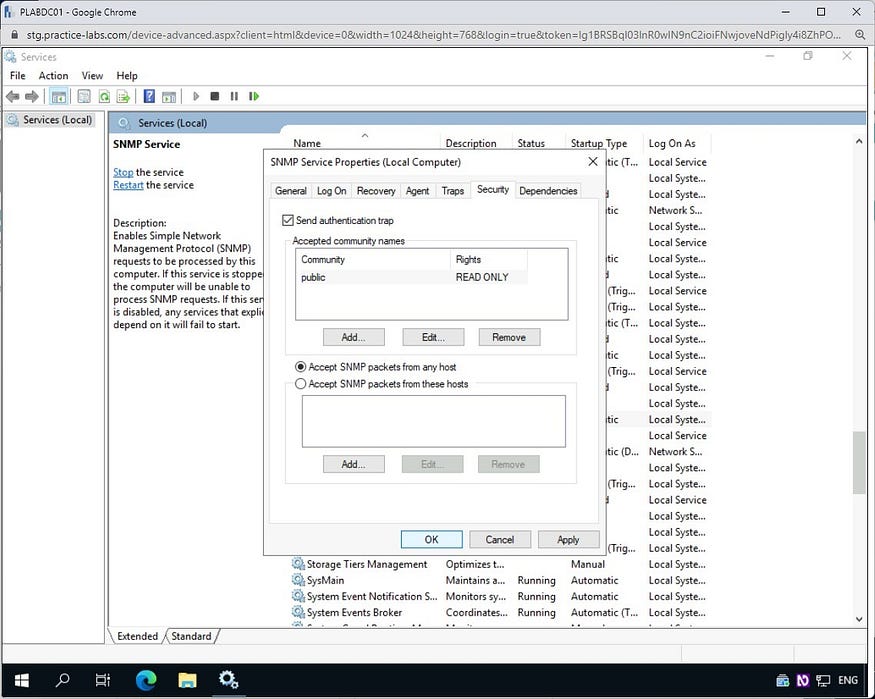

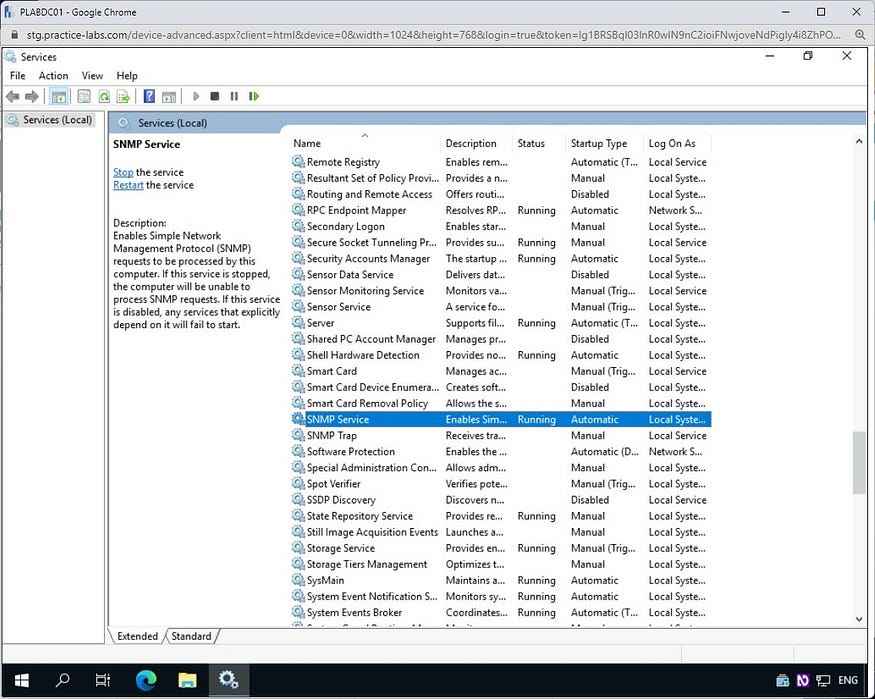

The Services snap-in is displayed.
Scroll down and Double-click SNMP Service.
Step 7
The SNMP Service Properties (Local Computer) dialog box is displayed.
Click the Security tab.
Step 8
Here, you will define a community and allow this system to accept SNMP packets from other systems.
Click Add under the Accepted community names section.
Step 9
The SNMP Service Configuration dialog box is displayed.
In the Community Name text box, type the following name:
public
Click Add.
Step 10
Notice that the community public appears in the Accepted community names section.
Select Accept SNMP packets from any host and click OK.
Close the Services window.
Step 11
Connect to PLABWIN10 and click SNMP in the left pane.
Step 12

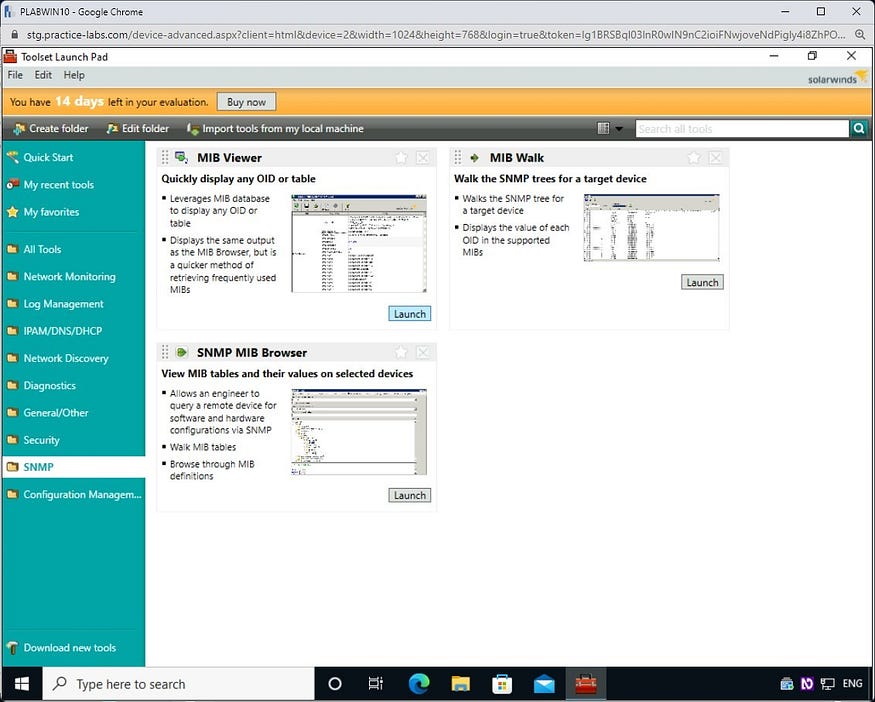

The right pane lists several SNMP-related tools.
Click Launch under MIB Viewer.
Step 13
The Toolset dialog box is displayed.
Click Continue Evaluation.
Step 14
The MIB Viewer dialog box is displayed.
Click inside the Hostname or IP Address textbox.

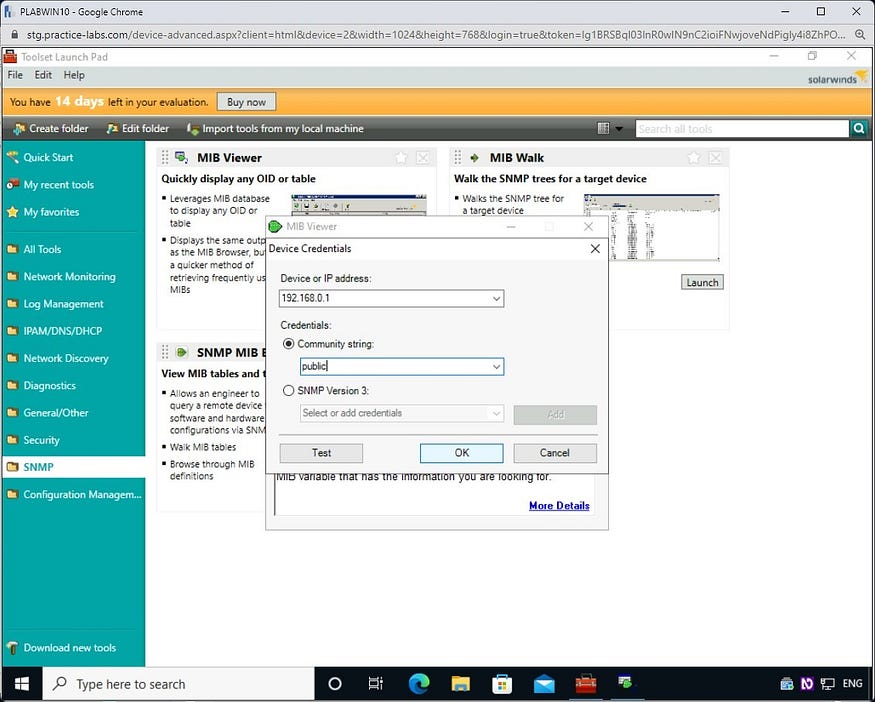

The Device Credentials dialog box is displayed. in the Device or IP address drop-down, enter:
192.168.0.1
From the Community string drop-down, type:
public
Click OK.
Step 15

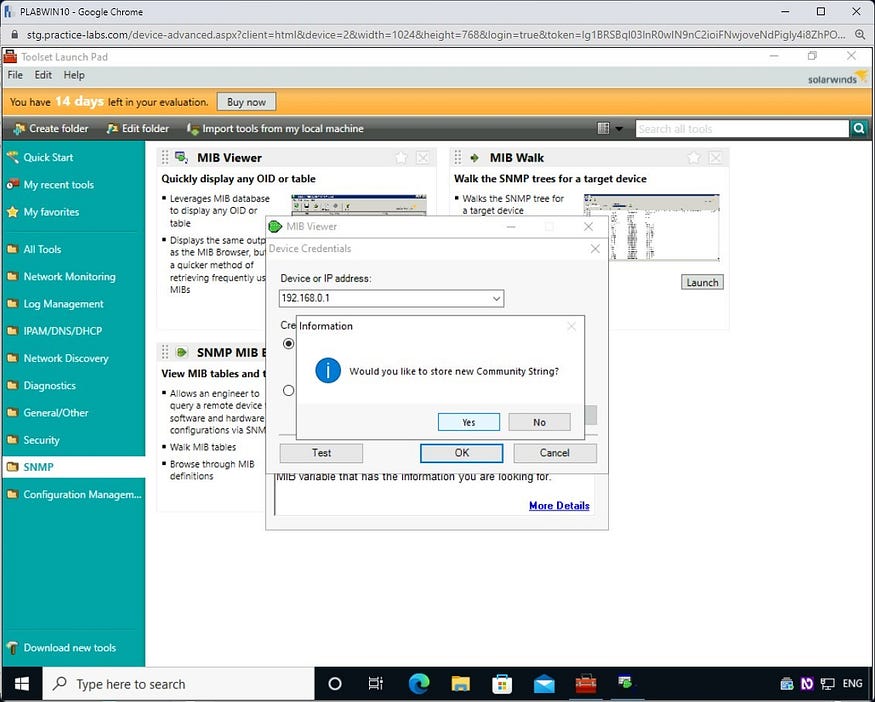

You will then be prompted to store the Community string, click Yes.
Step 16

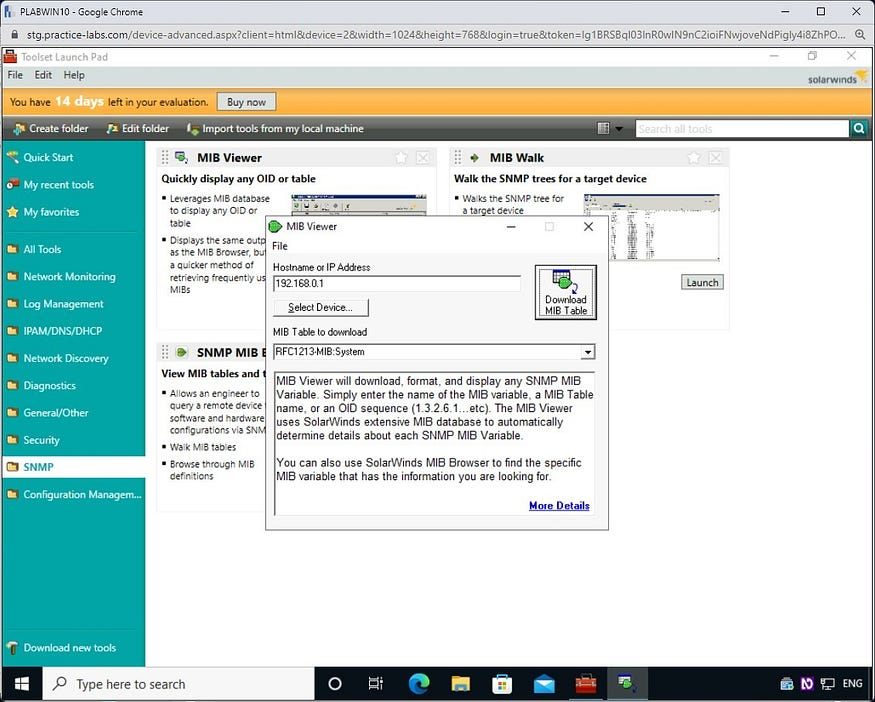

Note that the name is now populated in the Hostname or IP Address textbox.
From the MIB Table to download drop-down, select any of the given MIB Table names.
Click Download MIB Table.
Step 17

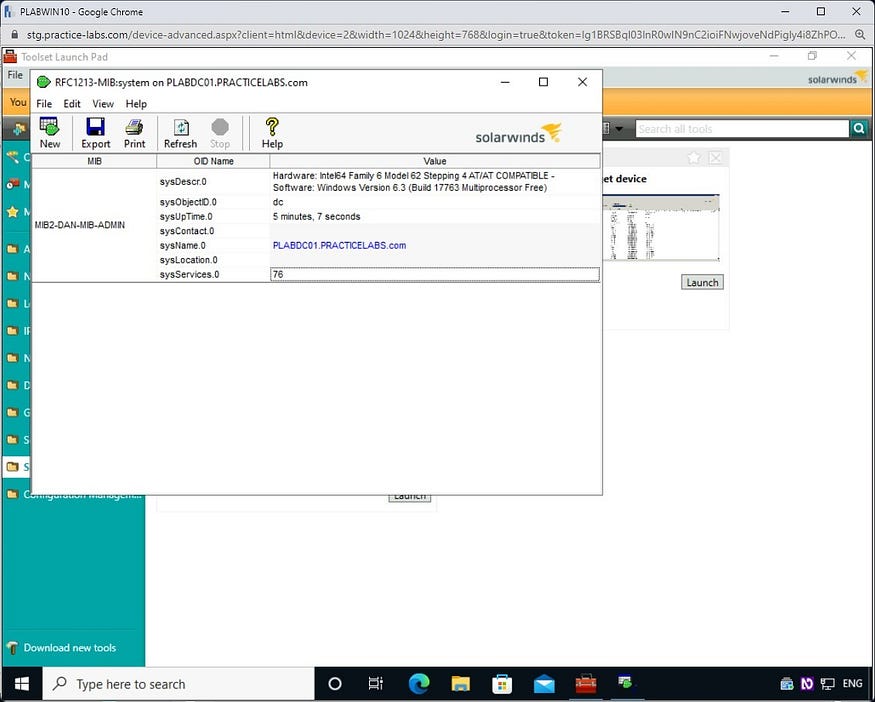

The RFC1213-MIB:system dialog box is displayed, which displays information on the scanned network.
Close all open windows.
Task 3 — Perform SNMP Enumeration Using Snmp-check
Snmp-check is a tool that is readily available in Kali Linux. Snmp-check is designed to enumerate the devices and systems running the SNMP service. It can collect a great deal of information in a readable format. Some of the key information it can collect is:
- System information including name, IP address, hardware details, uptime, and domain name
- User accounts
- Network information, such as IP forwarding enabled or not, TCP segments sent and received, and default TTL
- Network interfaces
In this task, you will learn to perform SNMP enumeration using snmp-check.
Step 1
Connect to PLABKALI01 and open a new terminal window.
Step 2
The snmp-check command is simple. You have to provide the remote system name on which you want to perform SNMP enumeration.

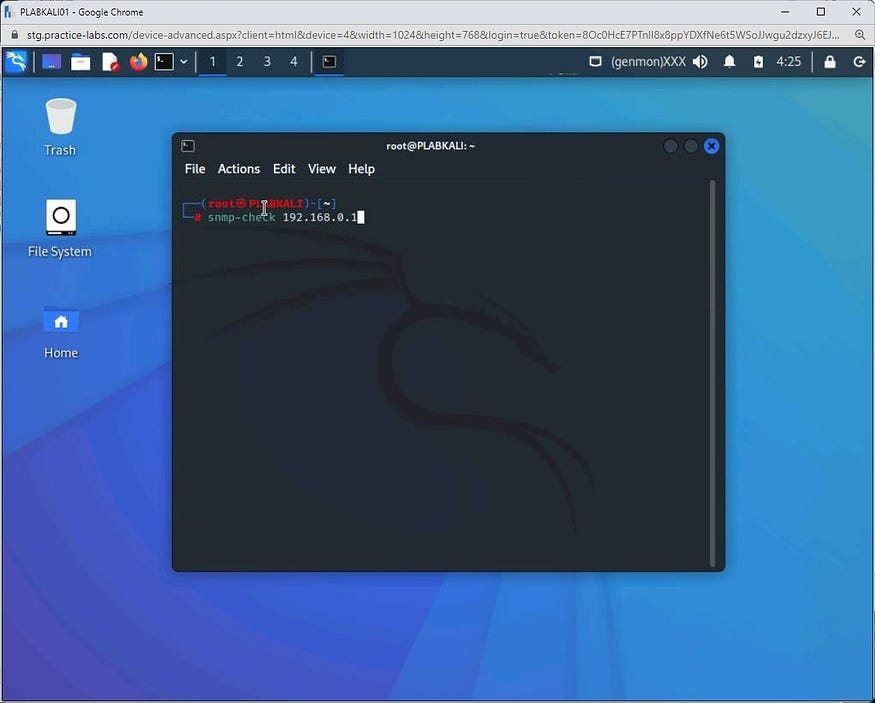

Type the following command:
snmp-check 192.168.0.1
Press Enter.
Step 3

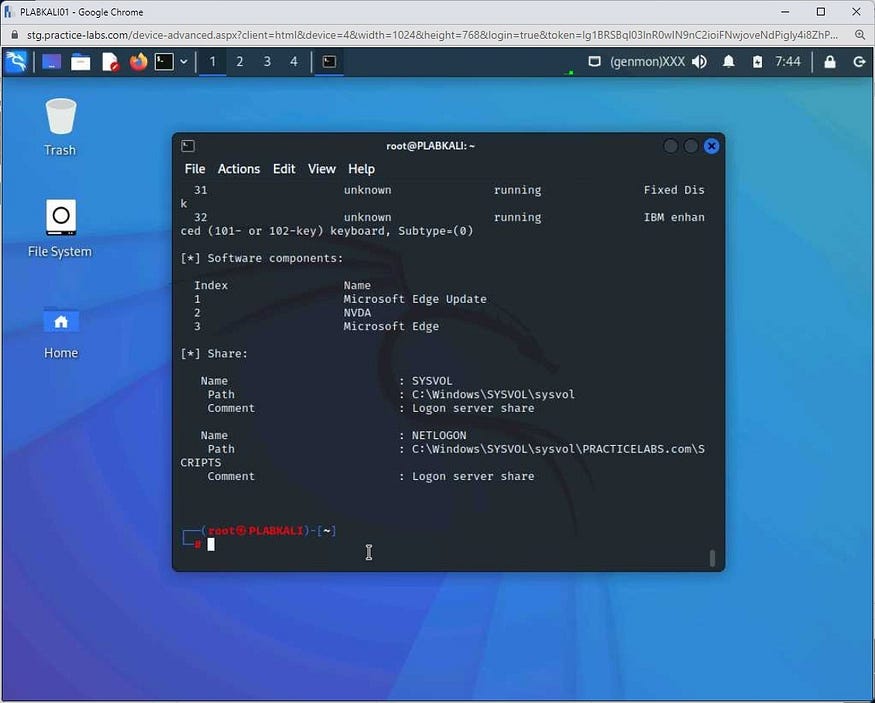

The command executes, and output is displayed.
Notice that the last section is Share that contains the shares on PLABDC01.
Step 4
Scroll up, and you will find several sections, such as:
- Network Services
- Processes
- Storage Information
- File system information
- Device information
Exercise 4 — LDAP Enumeration
The Lightweight Directory Access Protocol (LDAP) is used for accessing the directory services. LDAP accesses the Active Directory within the Windows environment to provide the directory listing. An attacker can enumerate LDAP and gain access to the information within it. Active Directory contains information about users, computers, groups, and organizational units. The attacker can get access to this information by using querying the database.
In this exercise, you will learn to perform LDAP enumeration.
Learning Outcomes
After completing this exercise, you will be able to:
- Perform LDAP Enumeration Using Softerra LDAP Administrator
Your Devices
You will be using the following devices in this lab. Please power these on now.
PLABDC01Domain Controller192.168.0.1/24PLABWIN10Domain MemberWorkstation192.168.0.3/24PLABKALI01Domain MemberWorkstation192.168.0.5/24PLABDM01Domain Member Server192.168.0.2/24
- PLABDC01
Windows Server 2019 — Domain Server192.168.0.1/24
- PLABDM01
Windows Server 2019 — Domain Member192.168.0.2/24
- PLABWIN10
Windows 10 — Workstation192.168.0.3/24
- PLABKALI01
Kali 2022.1 — Linux Kali Workstation192.168.0.5/24
Task 1 — Perform LDAP Enumeration Using Softerra LDAP Administrator
Softerra LDAP Administrator is a tool you can use for various LDAP directories. It works well with Active Directory and can also be used with Novell Directory Services. Even though it is an LDAP management tool, attackers can use it for user enumeration.
In this task, you will perform LDAP enumeration using Softerra LDAP Administrator. To do this, perform the following steps:
Step 1
Ensure you have powered on all the devices listed in the introduction and connect to PLABWIN10.
In the Type here to search textbox, type the following:
LDAP
From the search results, click Softerra LDAP Administrator 2015.1.
Step 2

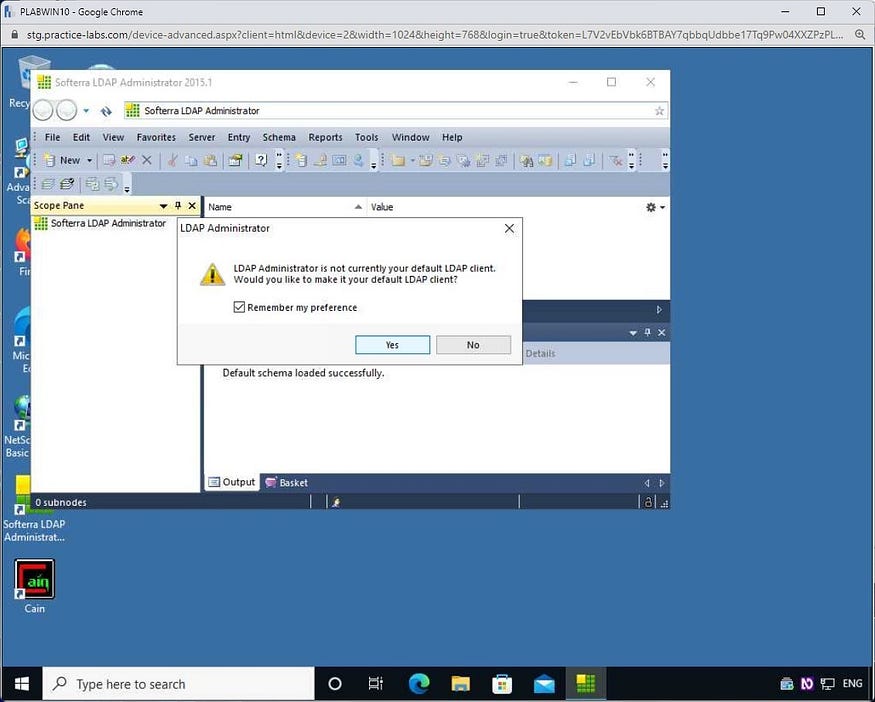

The Softerra LDAP Administrator 2015.1 window is displayed.
Select Remember my preference and click Yes.
Step 3
From the top menu bar, click Server and select New Profile.
Step 4

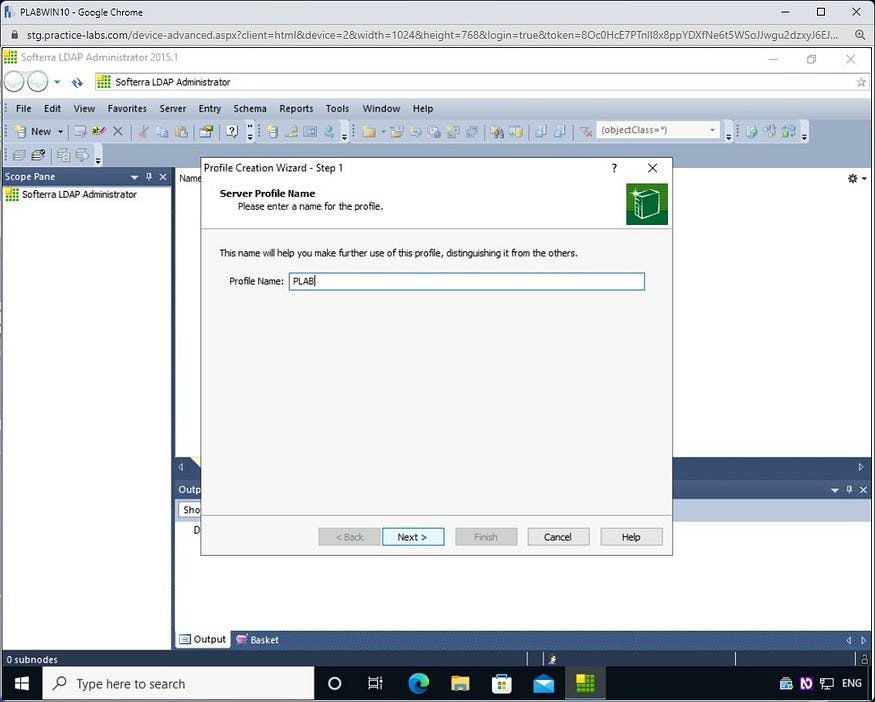

The Profile Creation Wizard — Step 1 wizard is displayed.
Enter PLAB in the Profile Name textbox on the Server Profile Name page and click Next.
Step 5

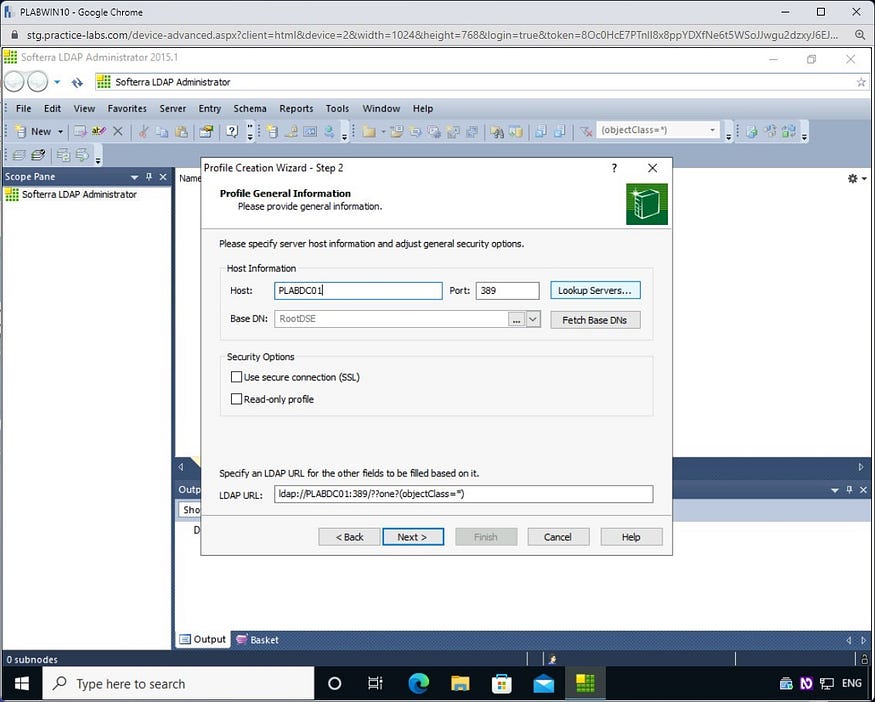

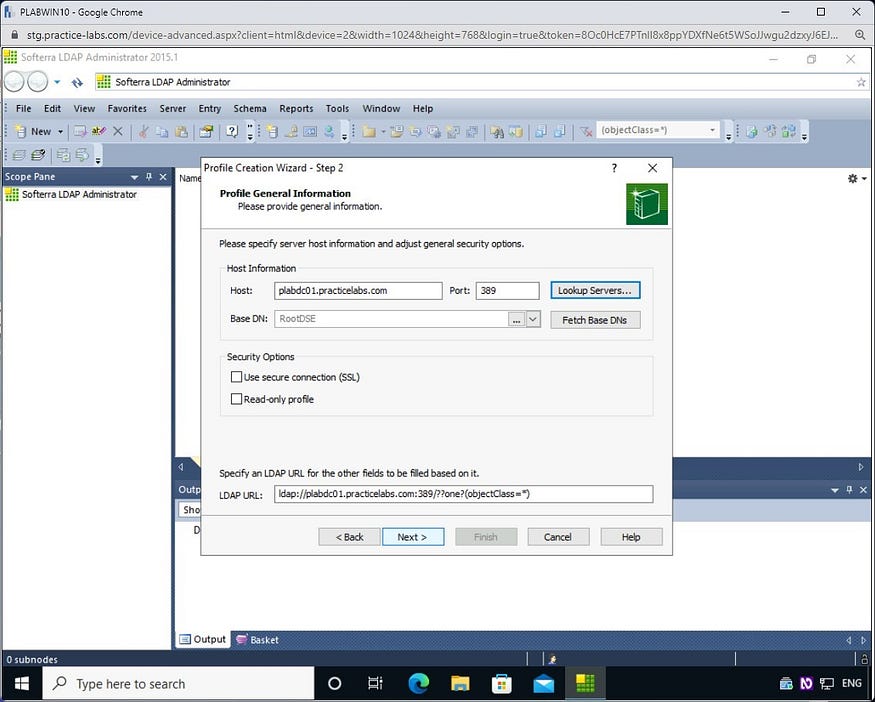

On the Profile Generation Information page, in the Host text box, type the following name:
PLABDC01
Click Lookup Servers.
Step 6
The Lookup LDAP Servers dialog box is displayed. PRACTICELABS.COM will be populated automatically in the Lookup in domain textbox.
The Available servers textbox displays plabdc01.practicelabs.com:389. Select plabdc01.practicelabs.com:389 and click Select.
Step 7
You are back on the Profile Creation Wizard. Note that all the information is now populated.
Click Next.
Step 8
On the User Authentication Information page, select Currently logged on user (Active Directory only) and click Next.
Step 9
On the LDAP Settings page, keep the default settings and click Finish.
Step 10
The left pane displays several nodes under PLAB. The right pane displays various attributes.
Step 11
In the left pane, expand DC=PRACTICELABS and then expand CN=Users and select it.
Step 12
The quickest method to locate information in LDAP Administrator is by searching it.
You can use Quick Search, located on the right side above the menu bar, to find the required information.
Click on PLAB at the top of the Scope pane and enter administrator in Quick Search. Once entered, click the search button adjacent to the search box.
Step 13
The search result is displayed. Now, only the Administrator account is listed as the search result.
Step 14
Right-click the result and select Locate in Tree.
Step 15
Note that the nodes in the left pane are automatically expanded, and the administrator is highlighted.
Step 16
You can also perform several tasks on LDAP, which is Active Directory in this case. For example, you can modify a user.

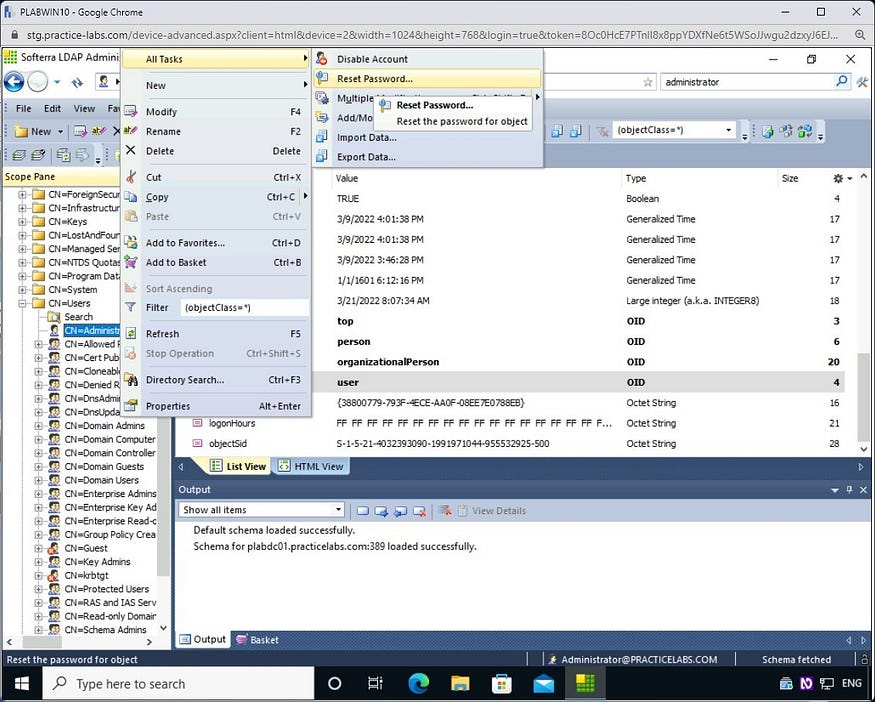

Right-click CN=Administrator in the left-hand pane, select All Tasks, and select Reset Password.
Step 17
The Reset Password for Administrator dialog box is displayed.
In the New password and Confirm password text boxes, type the following:
Passw0rd
Click OK.
Step 18

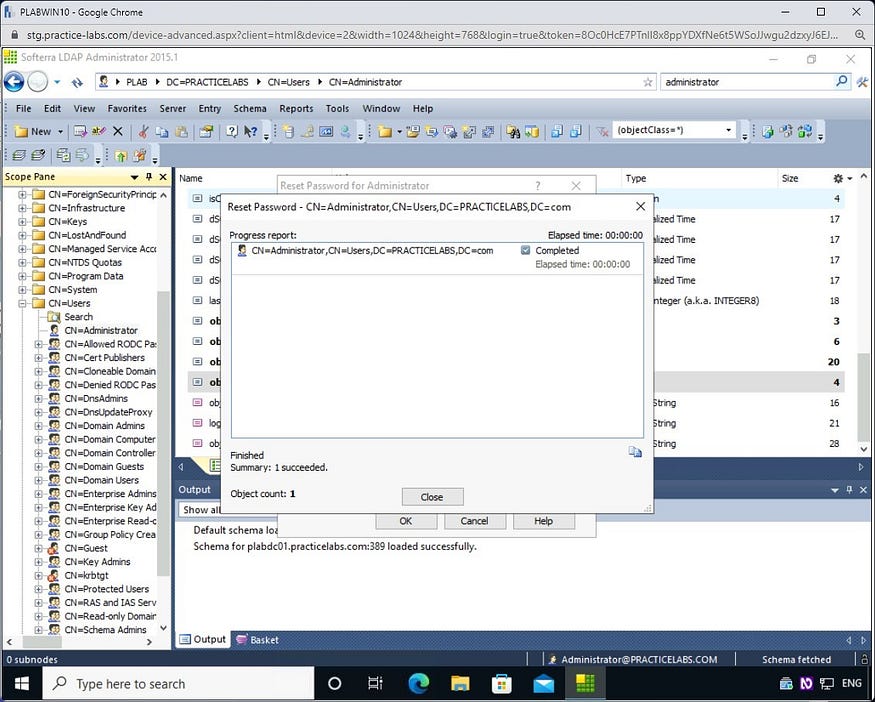

The Reset Password dialog box is displayed. Note that the status is now marked as Completed.
Click Close. The password for the Administrator user is now changed.
Note: If time permits, you can spend more time exploring this tool as it has far more capabilities than the ones demonstrated in the lab environment.
Close the Softerra LDAP Administrator window.
Methods of Prevention
In the above exercises, you learned that you could perform Enumeration using different methods. Let’s investigate how to prevent these methods from being performed.
Preventing SNMP Enumeration
To prevent SNMP enumeration, you need to stop the SNMP service. An alternate method is to restrict it to the localhost.
There might be a possibility that your organization is using an application that uses SNMP agents. You can remove the agent to prevent SNMP enumeration.
Some of the other methods to prevent SNMP enumeration are:
- Shut down SNMP service if not required
- Never use the default public community string
- Upgrade to SNMPv3
- Use the Additional restrictions for anonymous connections policy in Group Policy
- Ensure that you use SNMPv3 to encrypt the community strings and messages
- Restrict anonymous connections using Group Policy
- Enable firewall and block access to TCP/UDP ports 161
- Restrict access to null session pipes and shares, and IPSec filtering
- Do not configure read-write authorization on the SNMP service
Preventing LDAP Enumeration
Some methods can be used to prevent LDAP enumeration. Some of the key methods are:
- Always use SSL to encrypt LDAP communication
- Use Kerberos to restrict the access only to known users
- Enable account lockout policy
- Use NTLM to limit access only to the authenticated users
